DHV-Z1665
Inserter
High Speed Profile CNC Machining Center

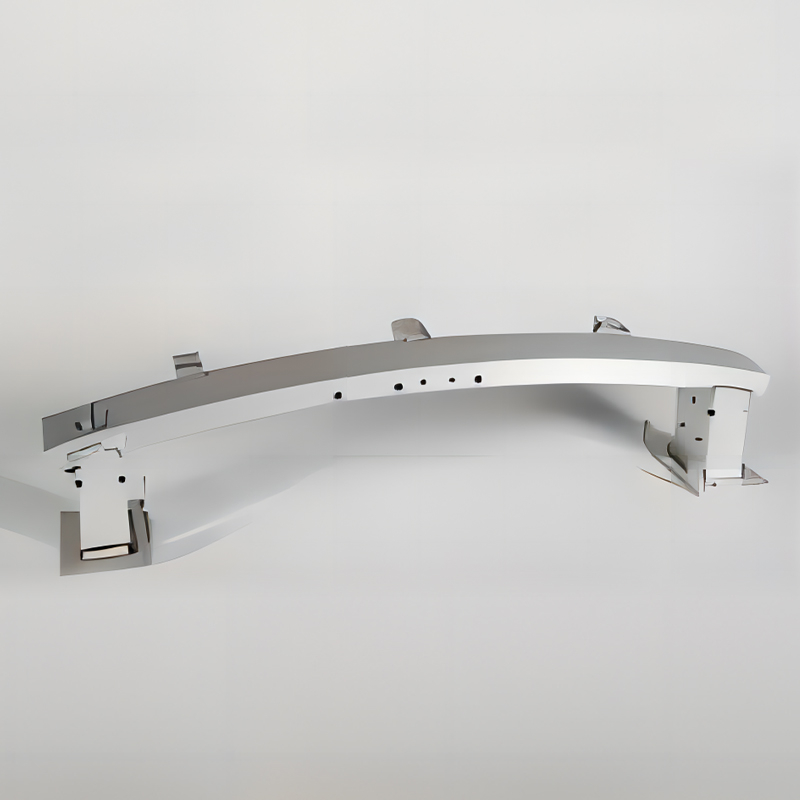

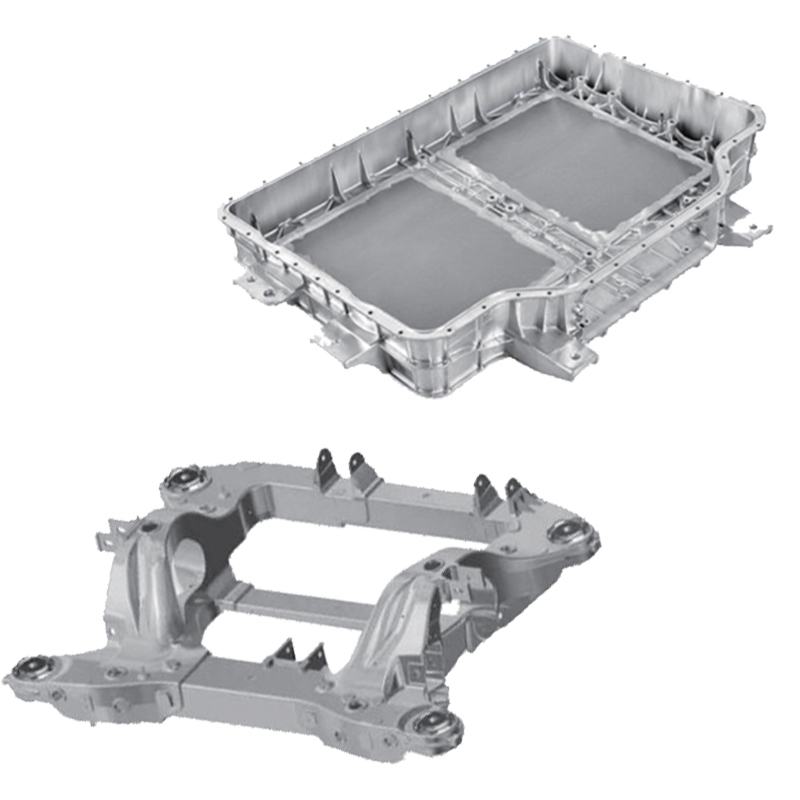

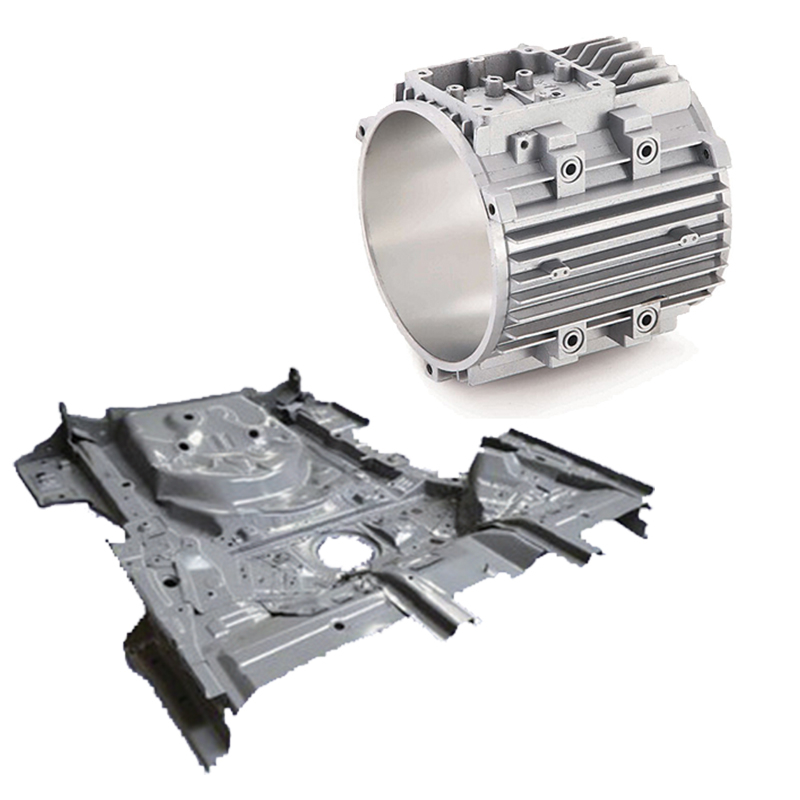

The DHV series is a heavy-duty machine widely used in the precision parts of industries such as New energy vehicles, Aerospace components, Mechanical parts, Railway parts and Automation industries.
It features multiple machining processes including Milling, Drilling, Boring, Expanding, Hinge and Tapping.
Main Features:
Non-standard specific operations on different profiles
Automatic clamping positioning
High processing capacity to increase efficiency
Technical Parameters
| Model | DHV-Z1665 |
| X-Y-Z Axis | 1600mm / 650mm / 700mm |
| System | Siemens, Fanuc, Mitsubishi |
| Repetitive positioning accuracy X/Y/Z mm | 0.01/0.01/0.01 |
| Spindle power | 11/18.5kw |
| Spindle tapper | BT40 |
| Spindle max speed | 12000rpm (MECHANICAL SPINDLE) |
| Increasing configuration (Four axis) | +B axis |
| Increasing configuration (Five axis) | +Baxis +Rotary |
