820Pro
Inserter
The Intuitive HMI,Easy Touch,Affordable All in Inserter

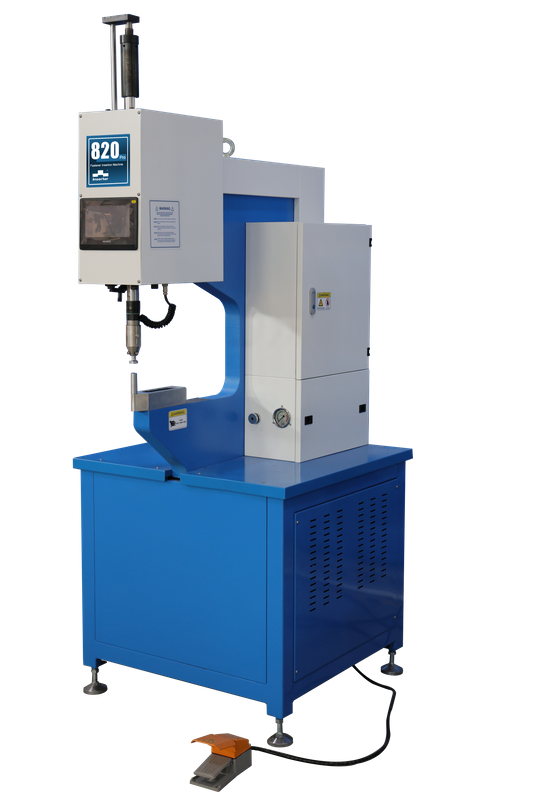

820Pro 8 ton (80 KN) ram force, 20 inch(500mm) throat depth, equipped with PLC control system and safety system.

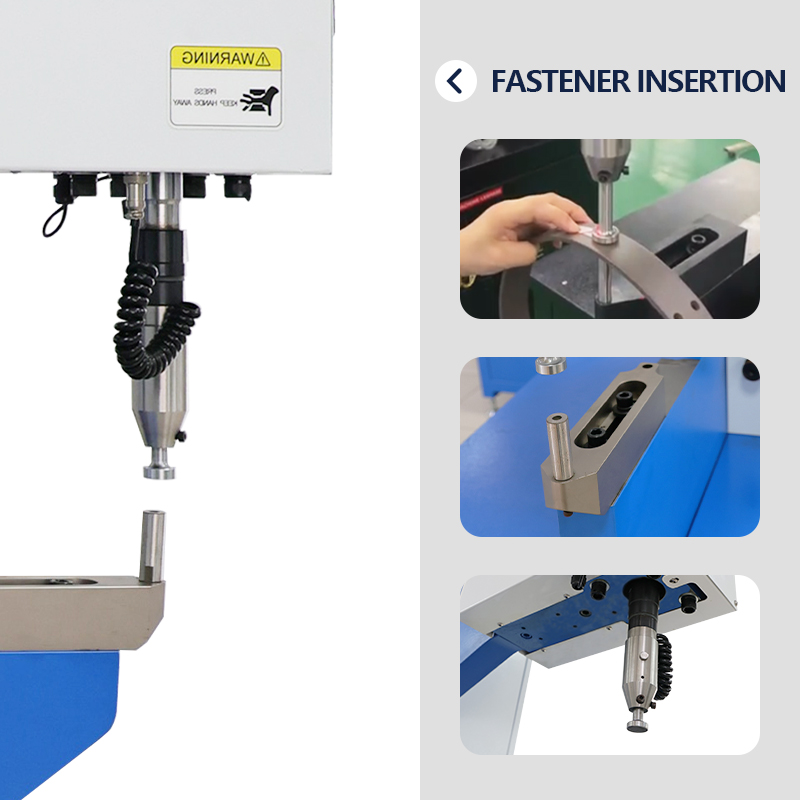

Machine Basic Functions
It is specially useful for soft workpieces such as PC board, plastic, glass and aluminum. It prevents the plate frombeing deformed or crushed when the fastener is pressed.
Easy Touch HMI
7 inch display touch screen instead of rotary / button control. Adopts PLC system,realize easily automation I/O communication.
100% Safety System
SAFE AND RELIABLE - Security system of Fastener Insertion Machine make the operator to full protection, which greatly enhanced the confidence and plug efficiency for the operator.
Quick Operation Interface
Dwell Time
It is the length of time that the force is applied between the upper and lower tools when inserting a fastener.
Up Travel
The Up Travel controls the up position of the upper tool. This is the position that the upper tool returns to after an insertion is completed.
Quick Force Setting
Press foot pedal, according pressure recommended value increase or reduce force adjustment control allowing you to find the right riveting force with in 10 seconds.
Laser Locating
Assist to handling the big workpiece to cover lower tool by laser locating light reference.
MSTP-Manual Tooling Package (13pcs)
| Die of Nut | 5pcs(M3/M4/M5/M6/M8) |
| Die of Stud | 5pcs(M3/M4/M5/M6/M8) |
| Short Flat Punch | 1pcs |
| Large Flat Punch | 1pcs |
| Straight Flat Punch | 1pcs |
