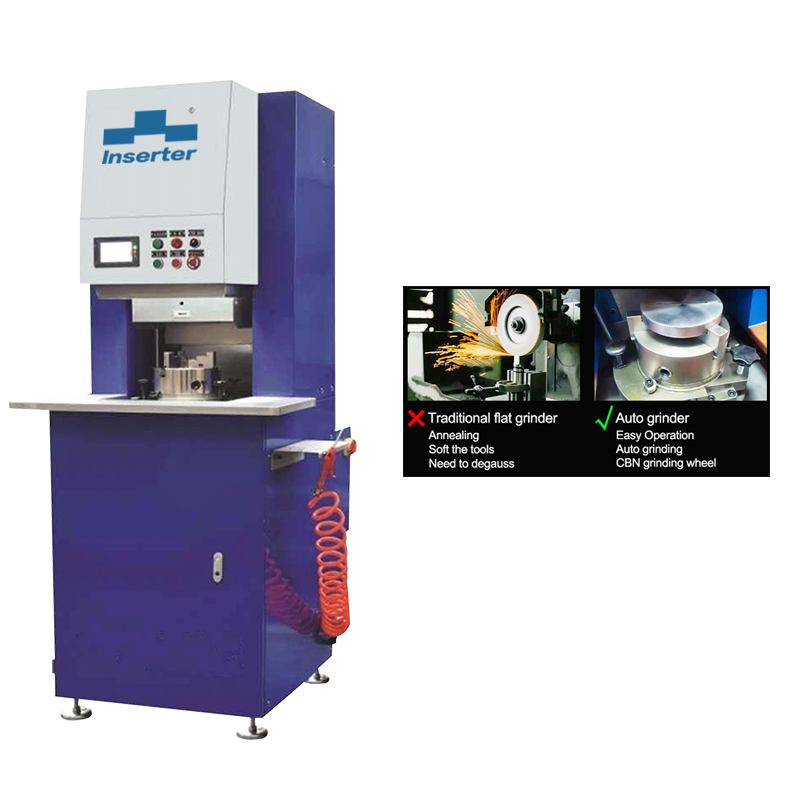

Accurate Regrinding Automatic Sharpening Punch Press Tool Grinder

WG Series Punch Press Tool Grinding Machine

Punch Grinder is a tool that can be put on the surface of a grinding machine for grinding punches. It is also capable of undertaking cylindrical grinding automatically.

Main Features

• The three-claw tray can tilt 0- -10 degrees to meet the grinding inclined surface and roof mold


• The grinding roof mold can be positioned through the pin to ensure the complete symmetry of the grinding punch and avoid the partial load force during cutting

• No manual compensation is required after the sand wheel is wear.The grinding process does not require manual involvement

• Automatic sharpening(Automatic tool setting, automatic removal)

• PLC control, automatically complete the grinding process of rough grinding, fine grinding, polishing, etc.

• Grinding accuracy: flatness±0.01MM

• The upper mold of AMADA 85 series AB station only needs to remove the pipe, and then the chuck can be installed for sharpening

• Automatic lubrication system

• Automatic cooling system

• Automatic liquid level detection system

• Automatic filtration system

• Safety door protection and alarm function

• Grinding overload protection system

• Spindle upper limit alarm function

• Emergency stop alarm function

• Interrupt return function

• Exhaust system helps trap remaining swarf


Product Specification
