E518
Inserter

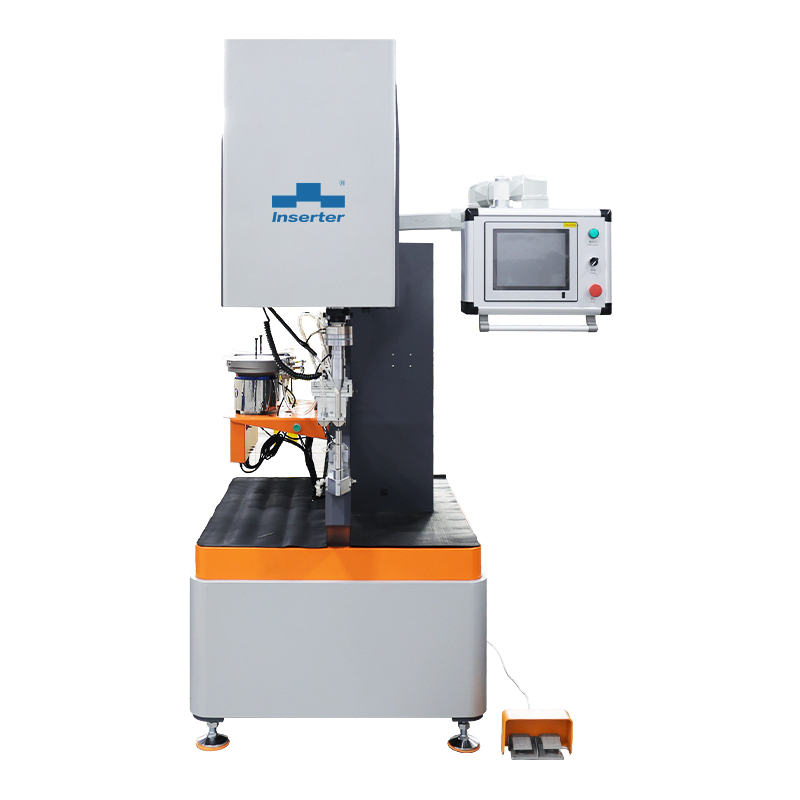

E518 Series Full Servo Fastener Insertion Machine
The machine uses all-electric servo system and has two riveting modes. The pressure mode implements pressure-time curve monitoring for the riveting process. The position mode is aimed at soft substrates, using the set target position as the stopping end point, and can detect the length of the fastener.
Main Functions

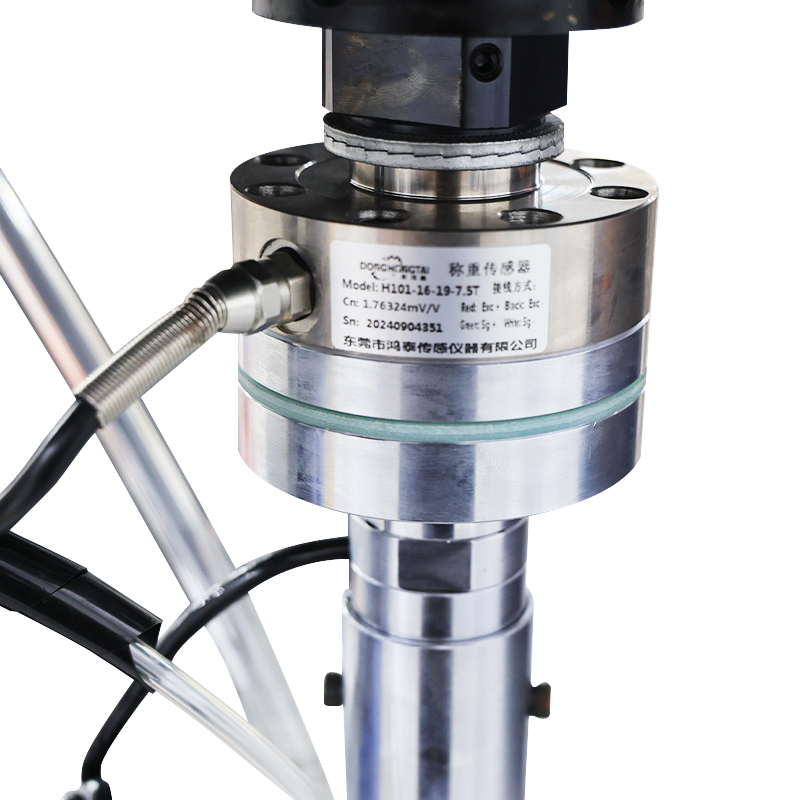

Special pressure controller. Repeat positioning accuracy ±0.01mm
High precision, output can be adjusted 8000 times in 1 second according to position and pressure feedback
The pressure and position curve data real time
Compared with the hydraulic system, 70% energy saving
Multiple real-time monitoring methods to effectively identify tolerances and position deviations
Pressure Mode
Pressure-time curve monitoring further enhances capabilities in data storage, data analysis, etc.
Specifications
| Model | E518 | E518-2 |
| Force Range | 0.2-50KN | 0.2-50KN |
| Throat Depth | 450mm | 450mm |
| Throat Height | 480mm | 530mm |
| Riveting Capacity | M6 Standoff M8 Stud M10 Nut carbon steel | |
| Stroke | 200mm | |
| Voltage | 380V/3Phase/50HZ standard | |
| Main Power | 7.5KW | |
| Size | 1400*900*2100mm | 1500*1200*2200mm |
More Models

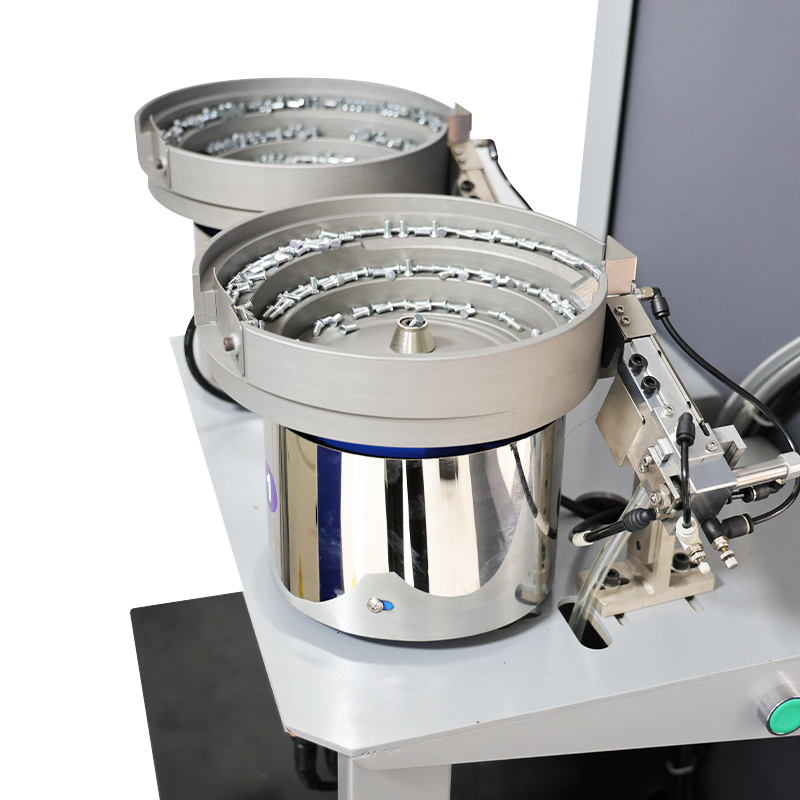

Multi station, tool automatic change
Connect to Industry 4.0, can connect to robot or XYZ platforma
