LM-42-800M
Inserter

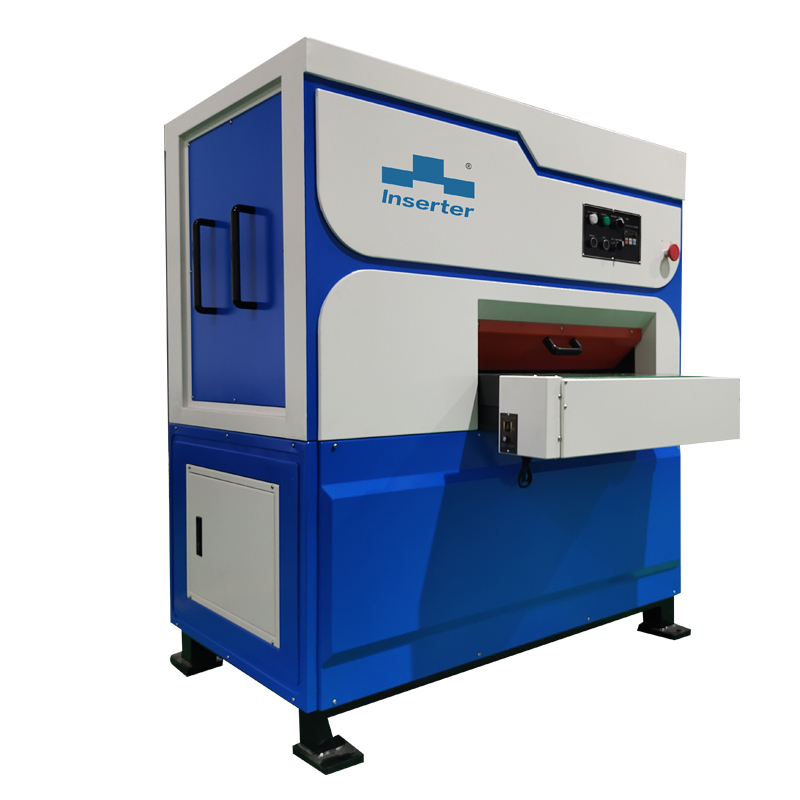

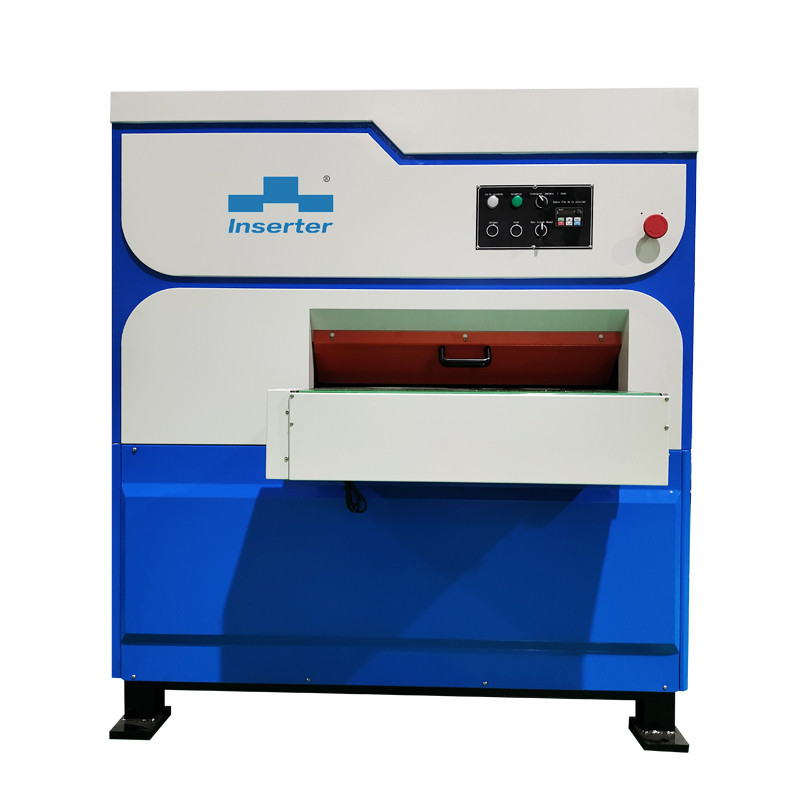

4 High Precision Manual Leveling Machine
Why 4-high leveling machine?

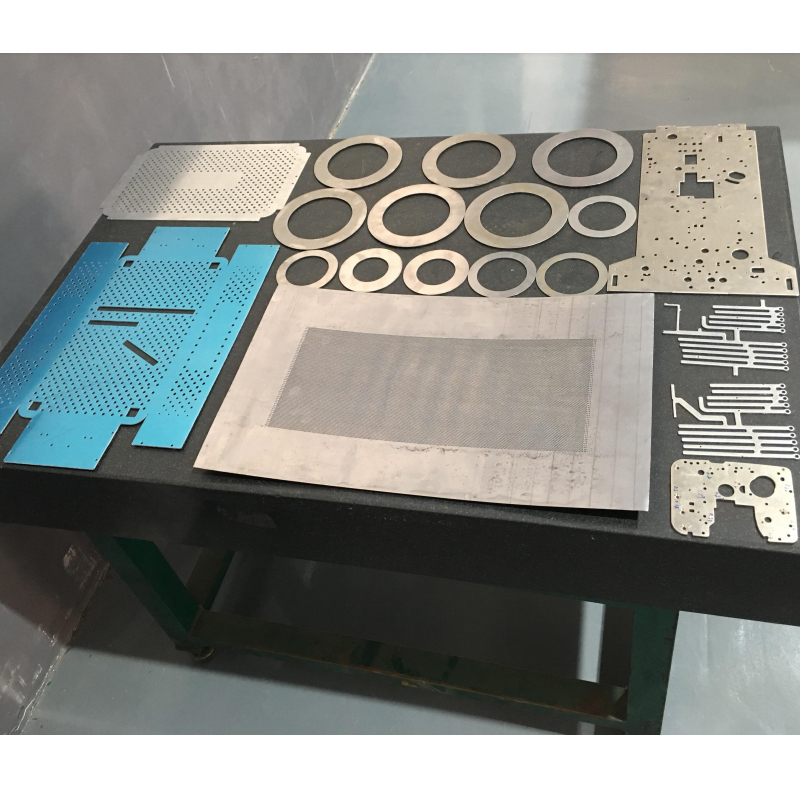

In the roller leveling process a sheet metal part passes through. way that the finished result is flat and almost stress-free. The 4-high leveling machine simple and fast in comparison to other leveling processes. Punched, laser-cut or flame-cut parts which require hours of manual straightening are leveled within a few seconds.
Main Features
4-high roller leveller, 19pcs leveling roller, high leveling accuracy
No any hydraulic system

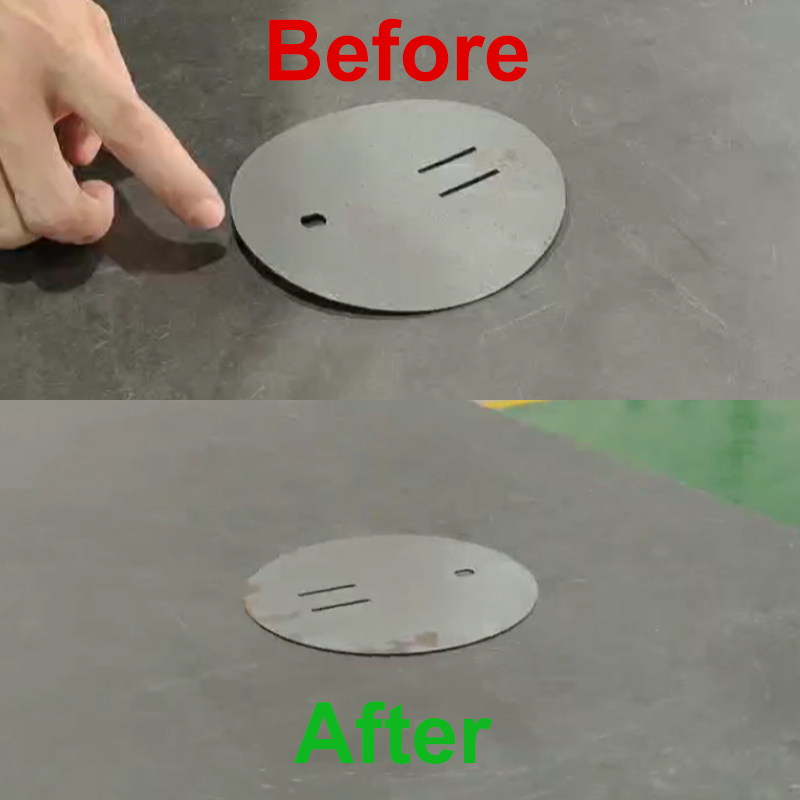

Flat and almost stress-free parts
Significantly faster and more economical than alternative leveling processes
Simple processes without extensive training requirements
Convenient for subsequent bending, deburring, drilling, grooving..
Product Specification
| Model | LM-42-800M |
| Max. Leveling Width | 800mm |
| Roller Diameter | 42mm |
| Max. Plate Thickness | 3mm |
| Leveling Thickness Range | 0.8-3.0mm |
| Min. Workpiece Size | 10*70mm |
| Leveling Accuracy | 0.05-0.2mm/㎡ |
| Leveling Speed | 0-6m/min |
| Leveling Roller Quantity | 19pcs(upper 9pcs/Lower 10pcs) |
| Leveling Roller Surface Hardness | HRC60~63 |
| Leveling Roller Material | Gr15 |
| Backup Roller Column | Both Four Columns Upper and Lower Leveling Roller Set |
| Leveling Roller Gap Adjust Method | Four Points Manual Adjust |
| Voltage | AC 3 Phase 380V 50HZ(can customize) |
| Size | 1500*1450*1650mm |
