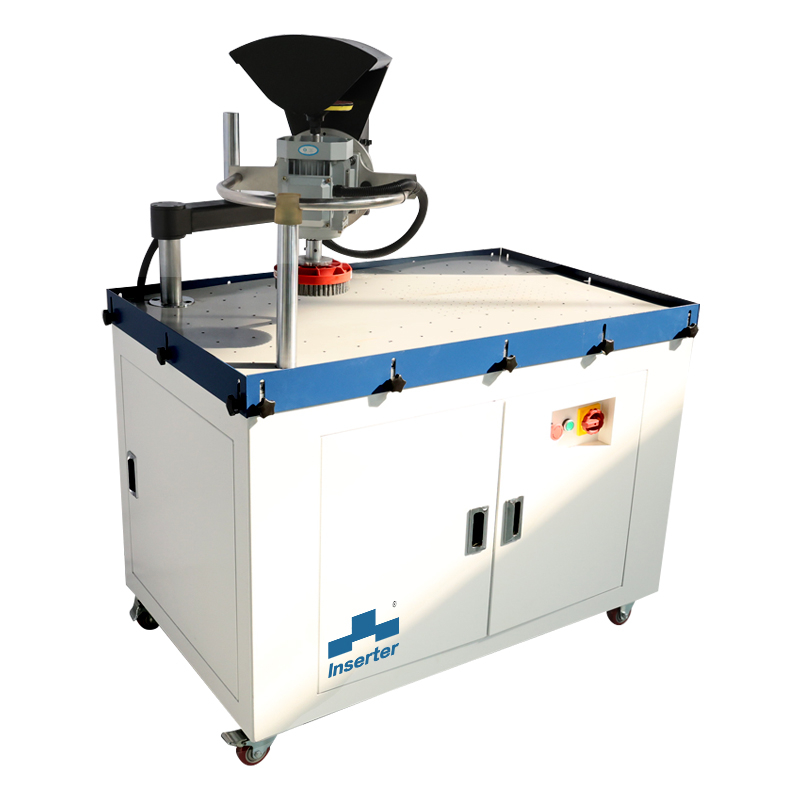

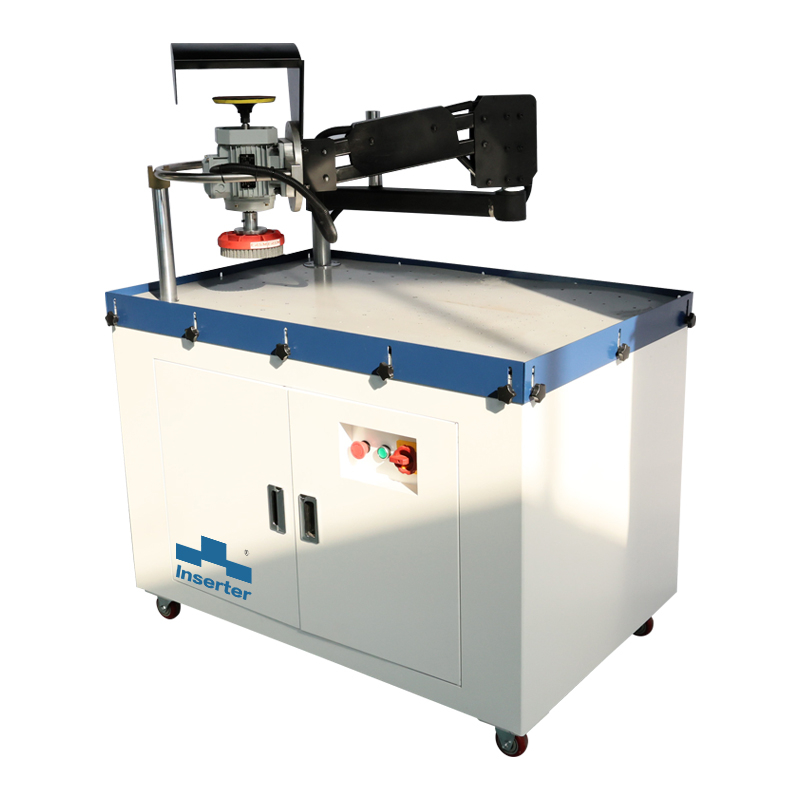

Flexible Swing Arm Edge Rounding Manual Deburring Machine

Function: Edge Rounding, Surface Finishing, Oxide Removal
Application: Sheet Metal, Metal Parts
Availability:
Quantity:
  • RMD-162

  • RMD-162

RMD Series Manually Operated Deburring Machine

With the rise of the high-end equipment manufacturing industry, the traditional manufacturing industry is gradually moving towards the era of "light manufacturing". Laser technology has been widely used all over the world due to its advantages of high precision, high efficiency and low cost.


Due to the rise of the laser industry, burrs will occur when sheet metal is laser cut. In the past, we didn’t have many choices, such as Timesaver, which made it impossible for everyone to use deburring machines. Today, we have come to the United States to provide benefits to everyone.


Main Features:

  • Pneumatic floating grinding head,a power two head

  • Vacuum adsorption table, automatic distribution of vacuum suction

  • With the 180 degree rotating shaft, a quick and easy switch to different


Technical Parameters

Size Of Vacuum Adsorption Platform300*300mm
Upper Platform Workpiece1000*750mm
No Platform Workpiece1400*1400mm
Cantilever Operating Range1400mm*360°
Process Workpiece Thickness Range1-150mm
Brush Sizeφ162mm
Sand Sizeφ150mm
Grinding Head Power0.75kw
Grinding Head Quantity2pcs
Vacuum Air Volume1000m³/h
Total Power3.86kw
