CF-3050
Inserter

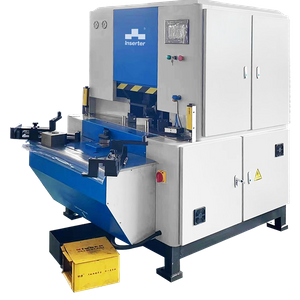

New Generation CNC Corner Former Machine
one-time corner forming without welding
Firstly I would like to introduce why we need to use corner forming machine? In the past, we needed bending, welding, and grinding to make a door panel. Now we don’t need welding and grinding with this corner forming machine, which greatly improves the efficiency.
This corner forming machine is upgraded on the basis of ACF, which makes more complicated cutting easier, more compact in structure, more convenient in operation and safer in operation.
Mainly used in aluminum curtain walls, electrical cabinets, door panels.
Main Features
High precision,No damage to coating
Fast corner forming without welding
Servo pump control, energy saving
Install light curtain,100% Safety system
Automatic positioning device
One-time corner forming and automatic cutting
Specification
| Model | CF-3050 | |||
| Total Power | 6KW | |||
| Voltage Access | 3 phase 4 wire, 380V and 220V | |||
| Air Pressure Access | >=0.8MPA | |||
| Mold Configuration | Forming outer mold 1.5-50, forming inner mold 1.5-50, V-shaped cutter | |||
| Oil Pump Motor | Hydraulic Servo Oil Pump Motor, 4.4KW | |||
| Processing Capacity | Material | Plate Thickness(mm) | Flange Height(mm) | Corner Radius R |
| Cold Rolled Steel Plate | 0.6 | ≤10 | Outer R2-R50 Inside R0.8-R49 | |
| 0.8 | ≤15 | |||
| 1.0 | ≤18 | |||
| 1.2 | ≤20 | |||
| 1.5 | ≤22 | |||
| 2.0 | ≤25 | |||
| 3.0 | ≤30 | |||
| Stainless Steel | 0.8 | ≤10 | ||
| 1.0 | ≤15 | |||
| 1.5 | ≤22 | |||
| 2.0 | ≤27 | |||
| Aluminum Plate | 0.8 | ≤15 | ||
| 1.0 | ≤18 | |||
| 1.5 | ≤22 | |||
| 2.0 | ≤25 | |||
| 2.5 | ≤28 | |||
| 3.0 | ≤30 | |||
| Workpiece Size | Min. 200*200mm Max. 6000*6000mm | |||
| Weight | 2600kg | |||
