DB-130W
Inserter

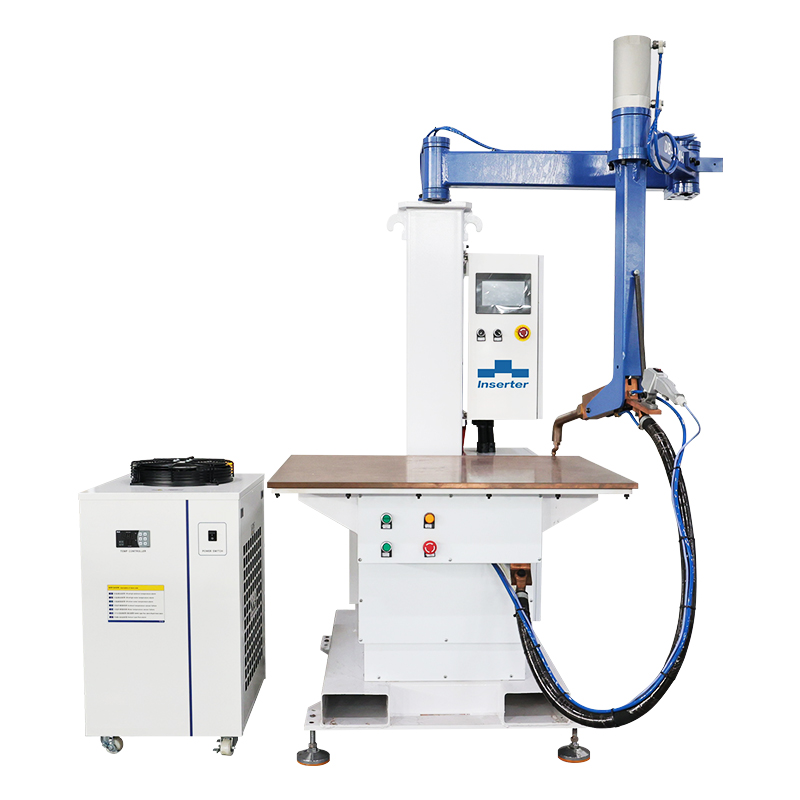

Medium Frequency Inverter Table Spot Welder
The intermediate frequency inverter spot welding machine converts three-phase alternating current into direct current after rectification, and then inverts it through the inverter circuit to become the primary stage of the intermediate frequency access welding transformer. It is stepped down and rectified by the welding transformer into a DC power supply electrode pair with very small pulsation. The workpiece is welded.
The inverter adjusts the primary or secondary welding current by feeding back it, thereby achieving the effect of constant current during the welding process.
Main Features

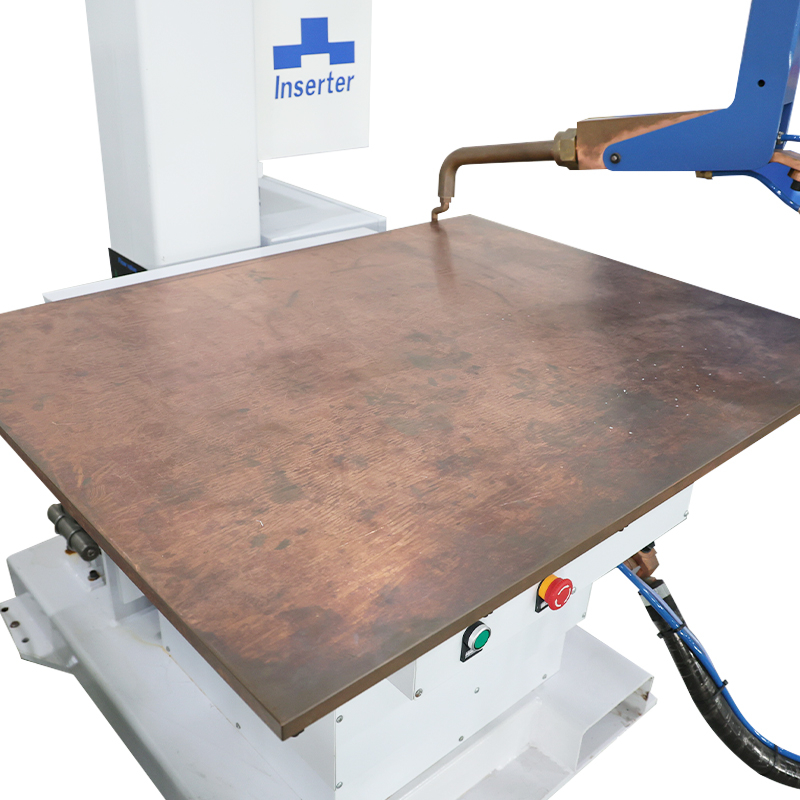

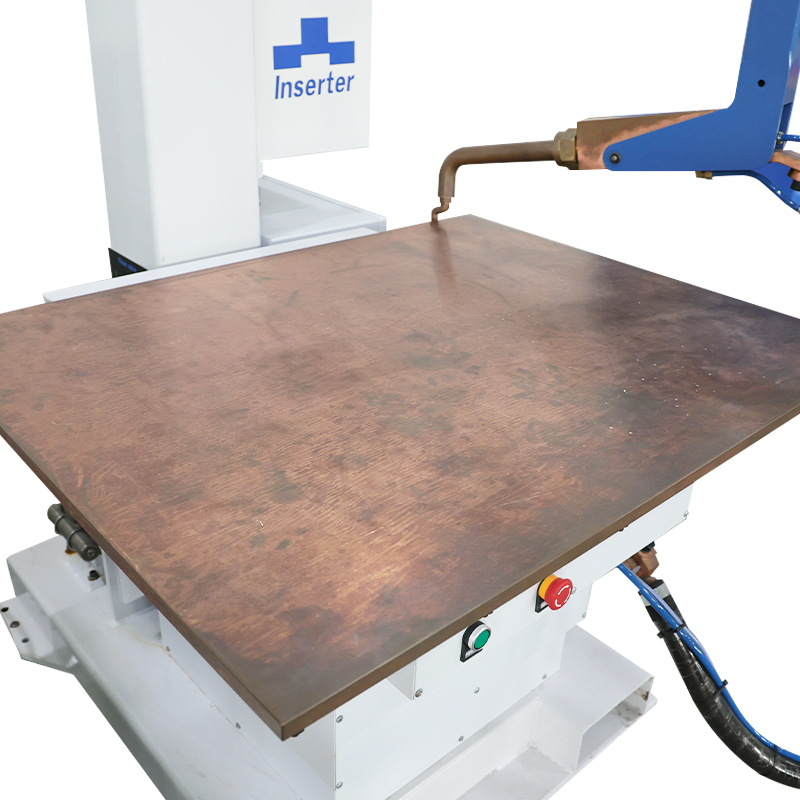

Self-contained workbench, only need to put the workpiece on the platform
Easy to set up, just enter material and thickness
No need for secondary grinding after welding

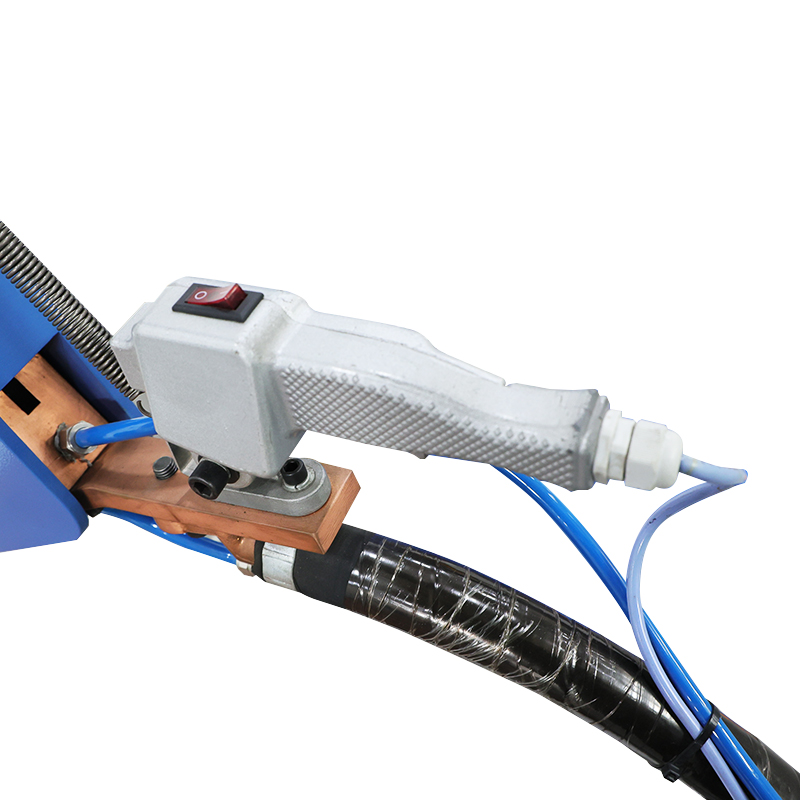

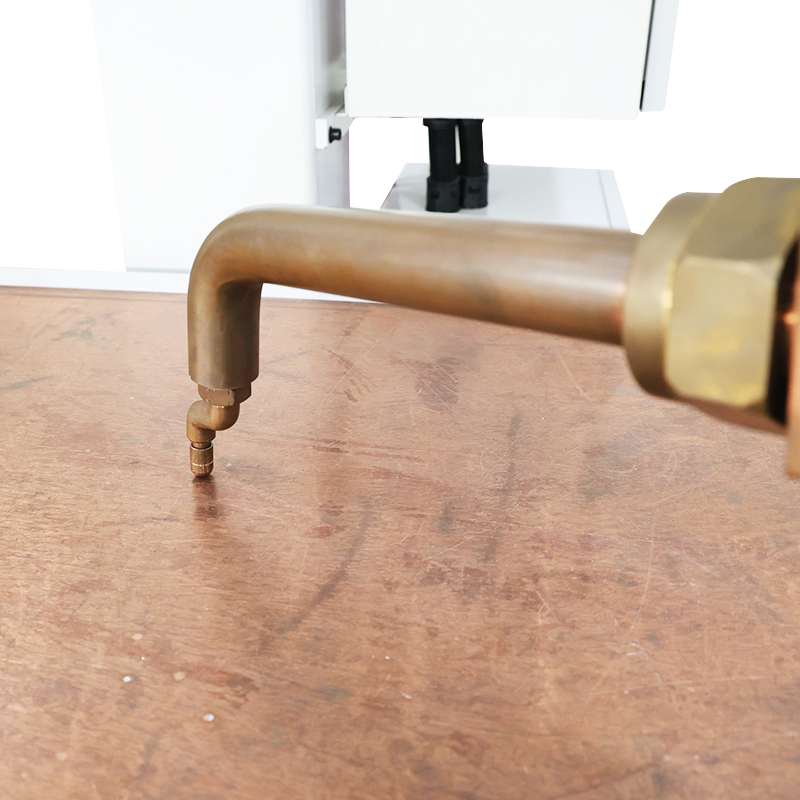

The welding head can extend into the deep parts of the sample
Application

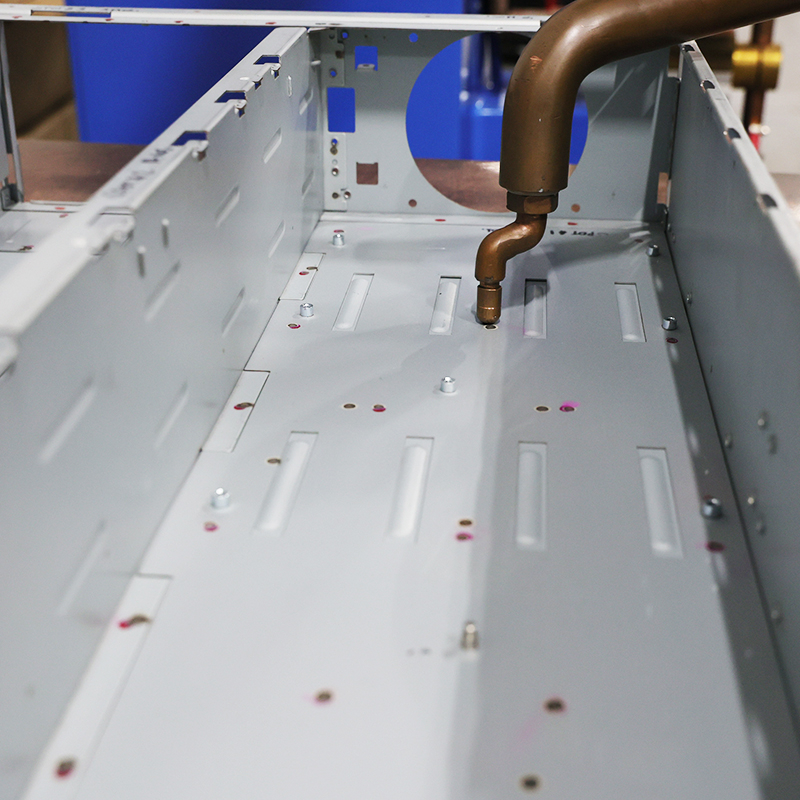

Suitable for welding copper, aluminum, steel and other non-ferrous metals. Widely used in spot welding and multi-point projection welding of low carbon steel plates, stainless steel plates, galvanized plates, and aluminum plates.
Specification
Model | DB-130W | DB-130W(HV) |
Rated Capacity | 130KVA | 130KVA |
Voltage | 3P 380V 50/60HZ | 3P 380V 50/60HZ |
Welding Head Type | Horizontal | Horizontal, Vertical |

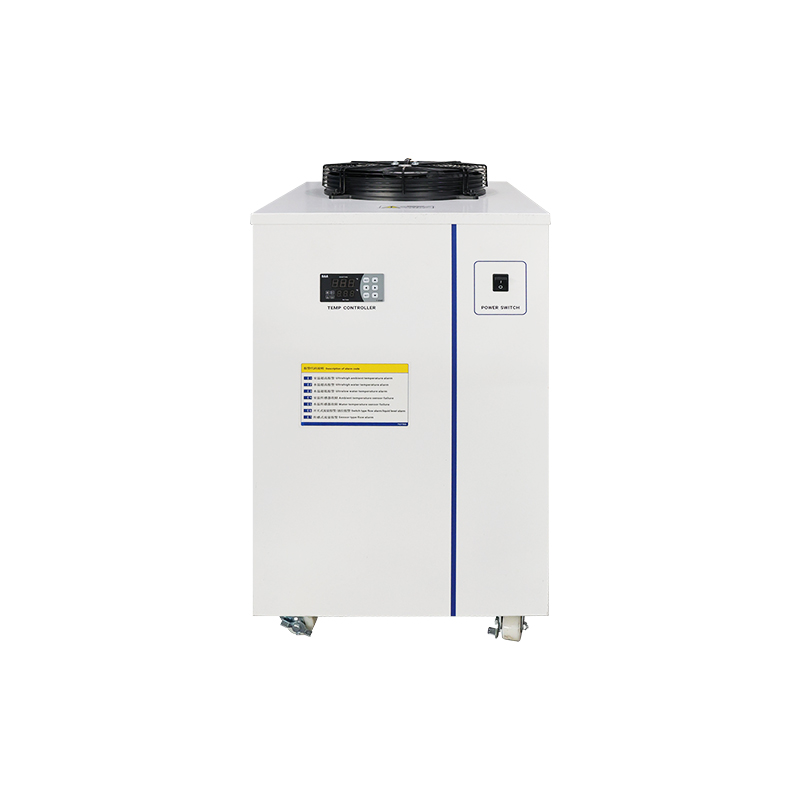

Cooling Water | 8L/min ≤30° | 16L/min ≤30° |
Electrode Pressure | 2000N | 2000N |
Air Pressure | 0.5-0.6Mpa | 0.5-0.6Mpa |
Standard Platform Size | 1000*800*15mm | 1000*800*15mm |
Standard Welding Thickness | Mild Steel 3.0+3.0mm | Mild Steel 3.0+3.0mm |
Stainless Steel 2.5+2.5mm | Stainless Steel 3.0+3.0mm | |
Aluminum Plate 2.0+2.0mm | Aluminum Plate 2.0+2.0mm | |
Galvanized Sheet 2.5+2.5mm | Galvanized Sheet 2.5+2.5mm |
