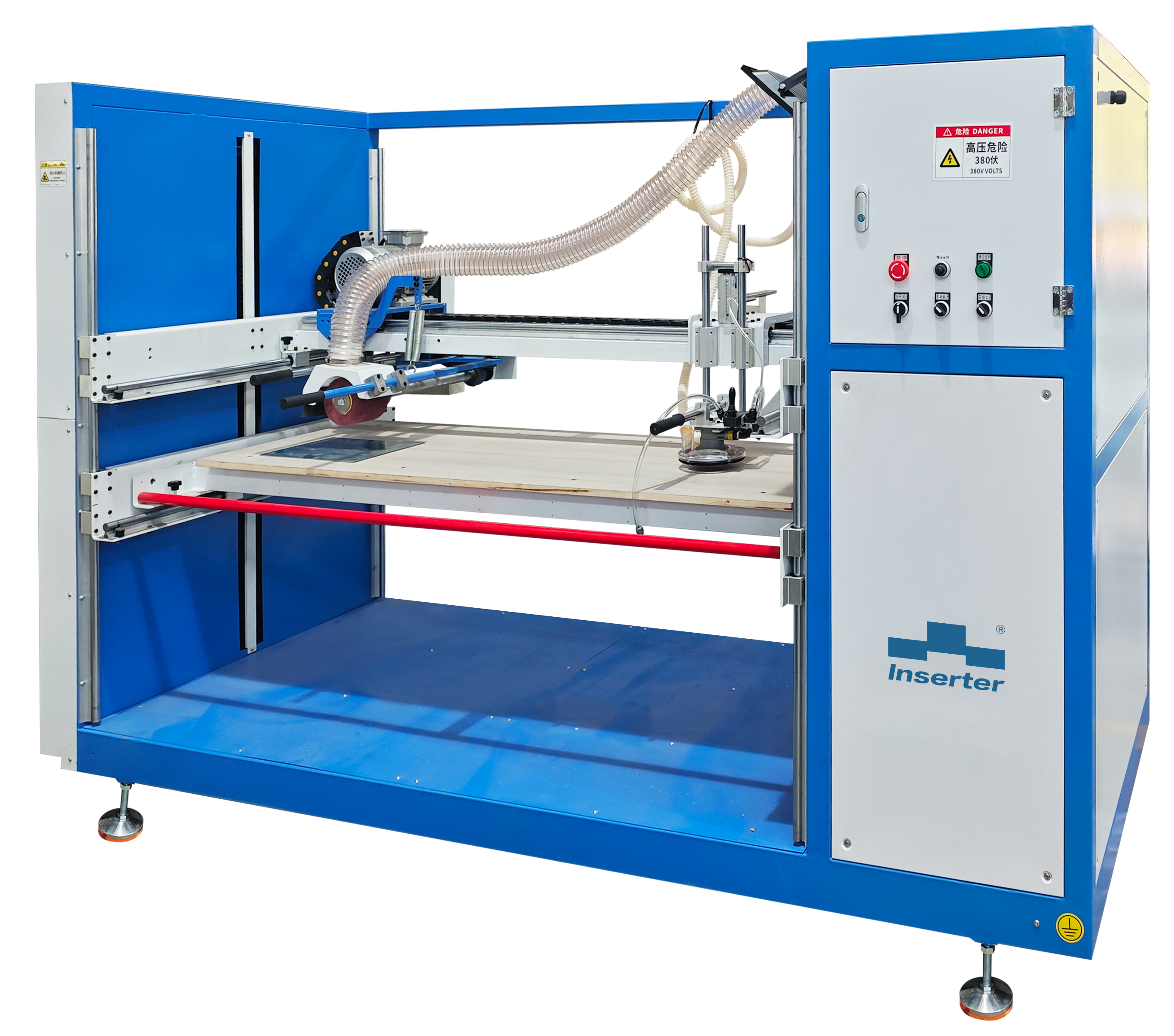

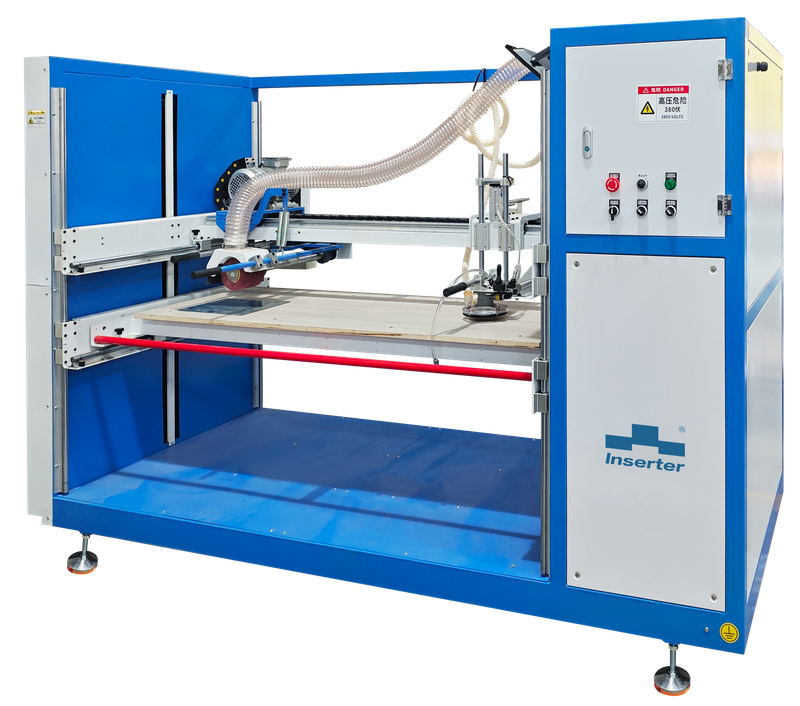

Customized Grinding and Drawing Machine

|

 Product Description

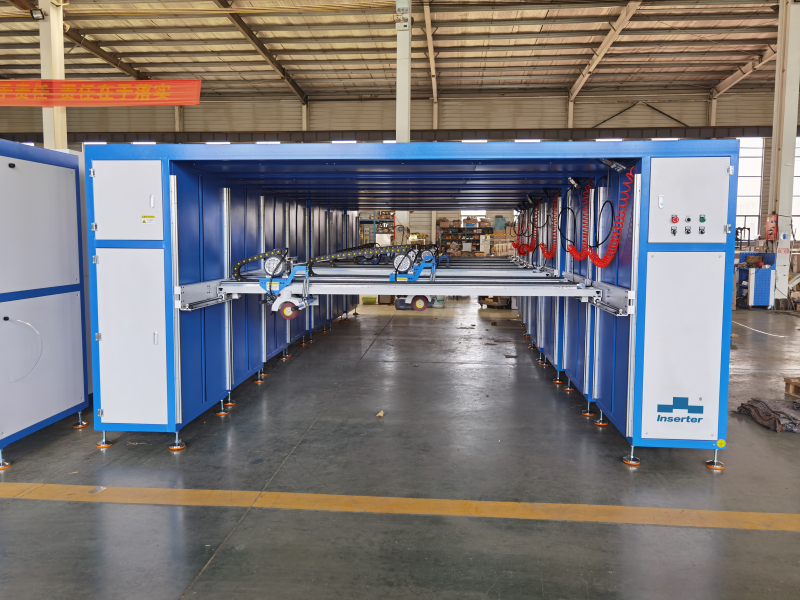

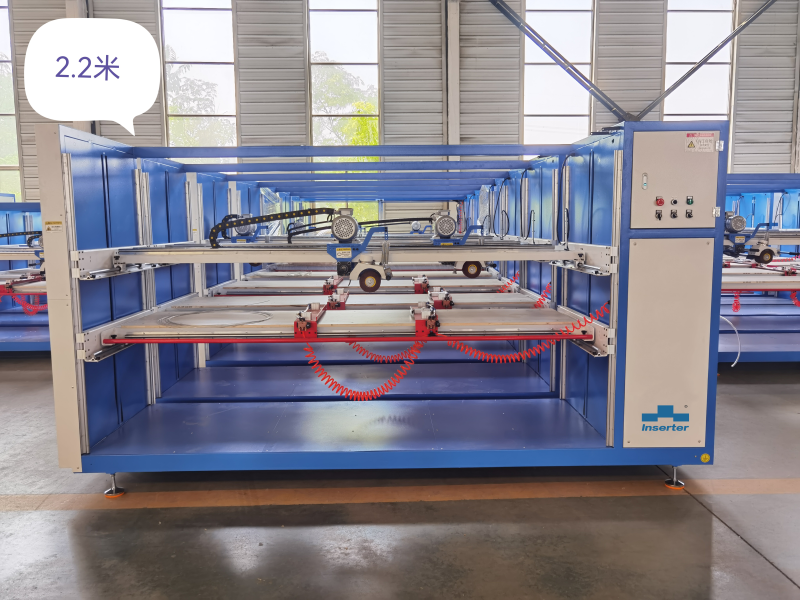

1）Our equipment features an advanced gantry structure built with high-quality welded steel for the frame, columns, and cross beams. When you use our machines, you benefit from our process as we anneal the unit to relieve stress, ensuring that your equipment remains rigid and stable over the long term.

2）For precise sanding, we equip the system with medium-inertia absolute servo motors on the X/Y axes and a small-inertia servo motor with a brake on the Z axis. You will appreciate how our high-precision planetary reducers and dual linear guide supports—driven by synchronous belt pulleys and gear racks—help minimize the impact of sanding dust on your operations, extending your maintenance cycles and service life.

3）We designed our custom high-speed, high-pressure DC sanding motor with your needs in mind, delivering fast speed, high torque, and strong overload capacity while meeting your dust prevention requirements.

4）When you need consistent sanding pressure, our flexible force-control system uses a high-rigidity pneumatic linear slide regulated by a pneumatic proportional valve to maintain a stable output that you can rely on.

5）Finally, you benefit from our volumetric automatic lubrication system, which provides independent lubrication for each guide block. Our GNC system actively manages the lubrication frequency and monitors the system status, ensuring that your equipment runs smoothly every time.

|

 Data Sheet

|

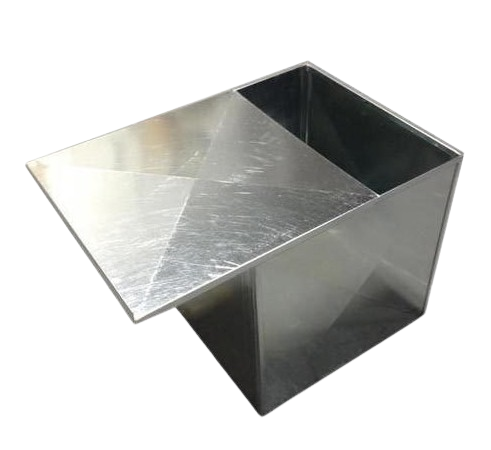

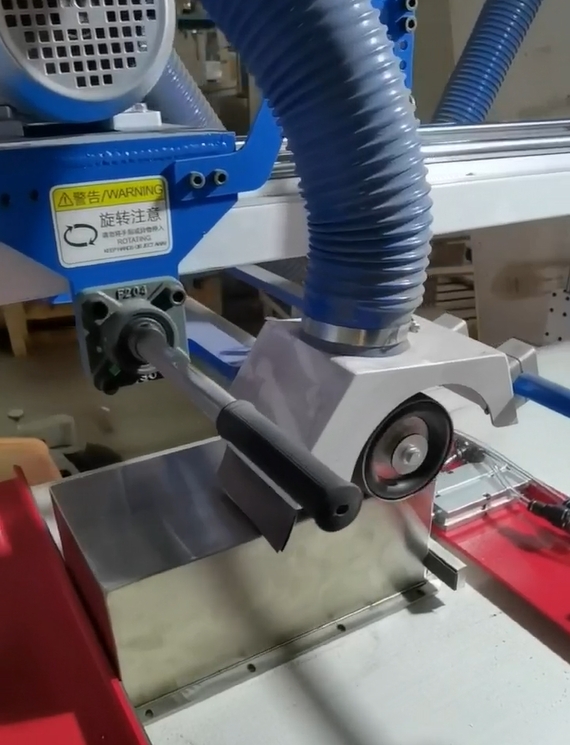

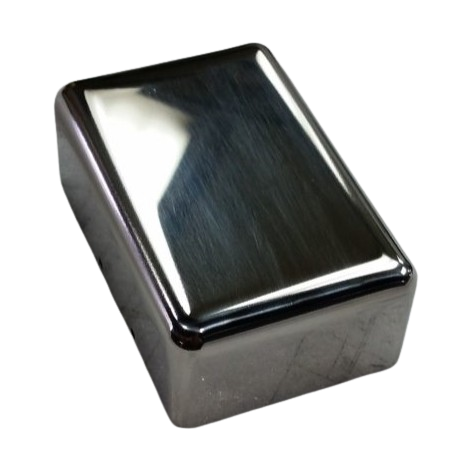

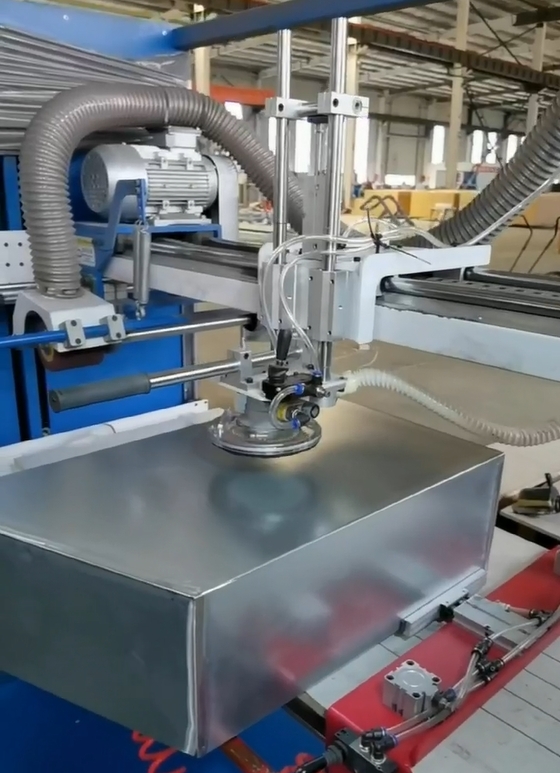

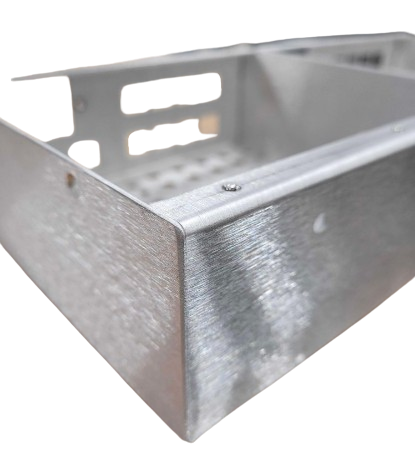

 Sample Display
