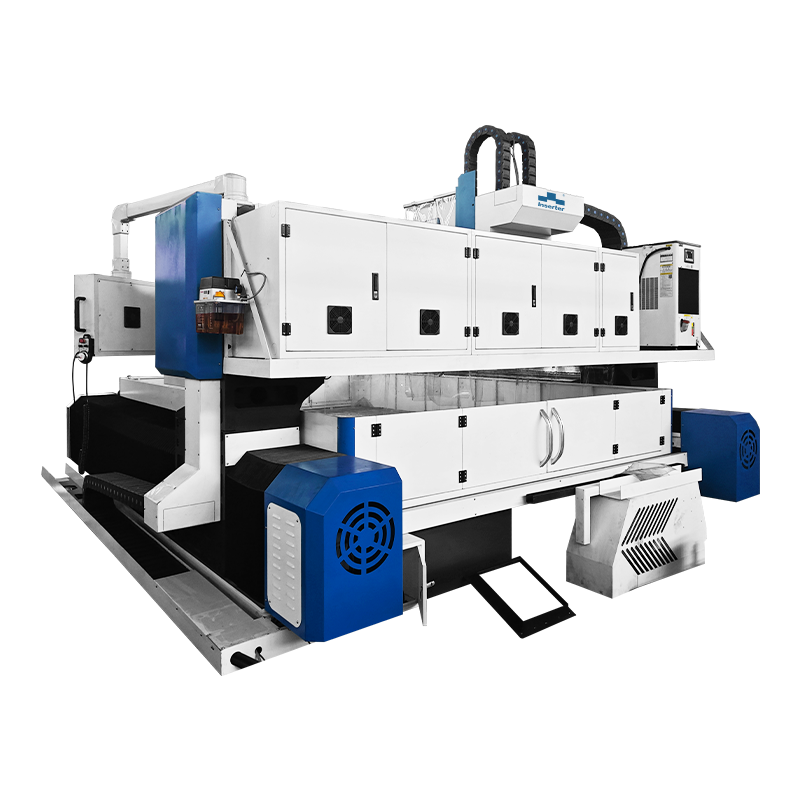

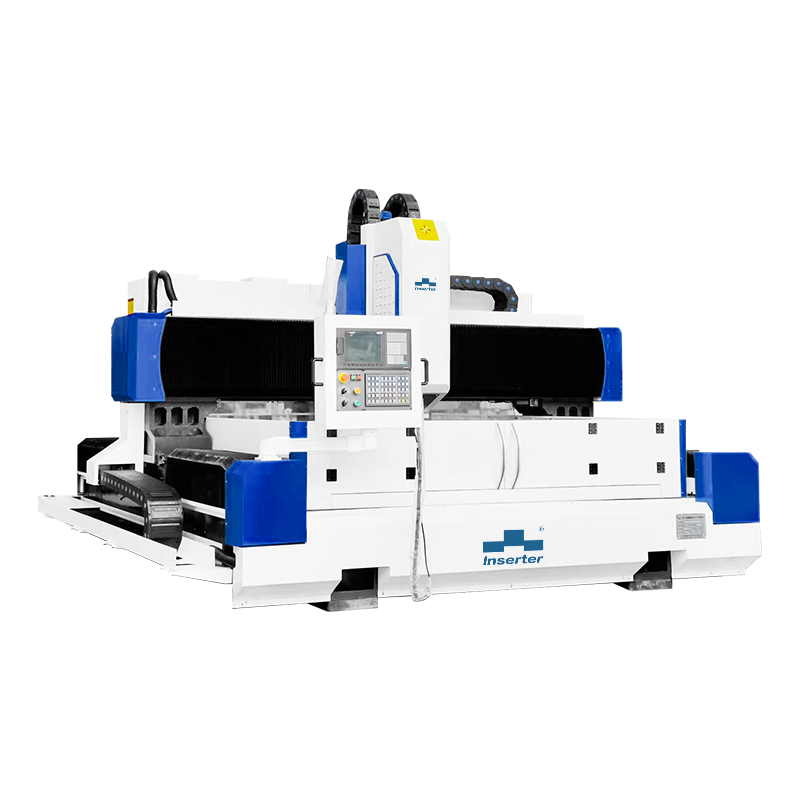

Dual-Drive Automated Drill and Milling Machine

|

 Product Description

1）The CNC gantry drilling and milling machine series is mainly used for high-efficiency drilling of workpieces within the effective range of thickness, such as flat plates, flanges, discs, and rings. Through holes and blind holes can be drilled on single-element parts and composite materials. The machine tool processing process is digitally controlled and the operation is very convenient. It can realize automation, high-precision, multi-variety, and mass production.

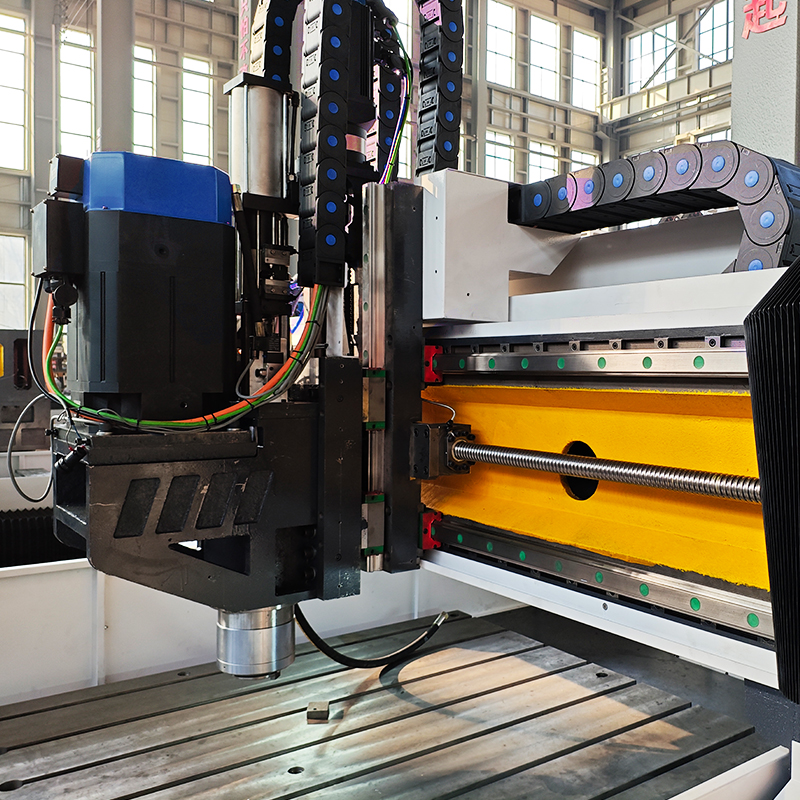

2）The power head spindle adopts a precision spindle, driven by a spindle motor, and can be infinitely adjusted according to needs. The spindle can be clamped with a drill or milling cutter through a BT50 chuck, with higher precision and high-speed cutting.

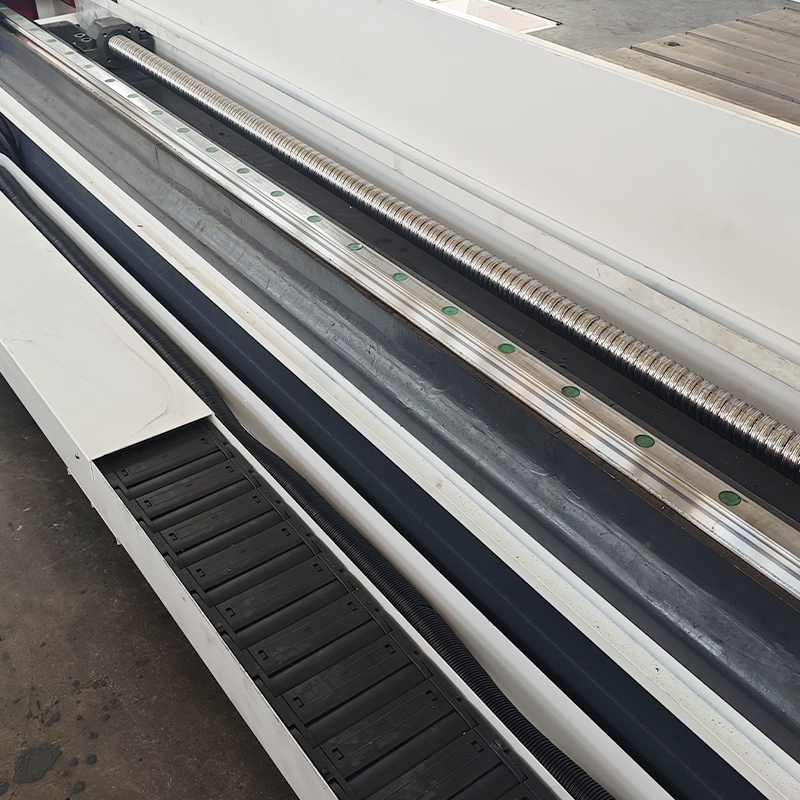

3）The machine tool adopts water cooling, equipped with a coolant supply, recovery, and circulation system, and an automatic oil lubrication system to ensure the smooth, long-term and effective operation of the linear guide and ball screw.

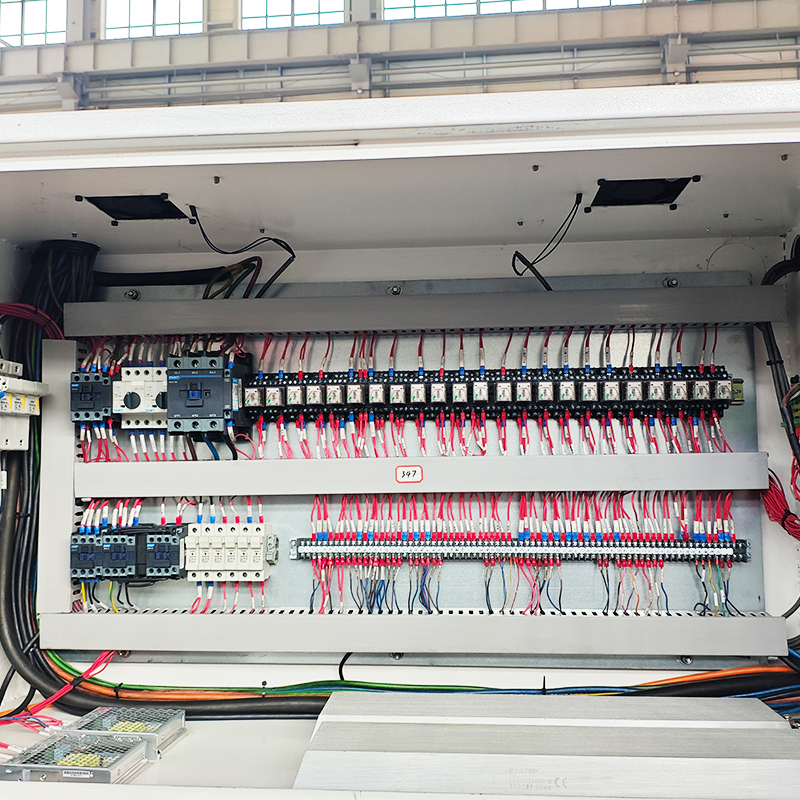

4）The electric drive adopts a high-precision servo motor drive, equipped with an RS232 interface and a color display, a Chinese operation interface, and can input workpieces on-site/external USB. It is easy to operate and equipped with a full digital high-speed handwheel to make your operation more convenient and quick.

|

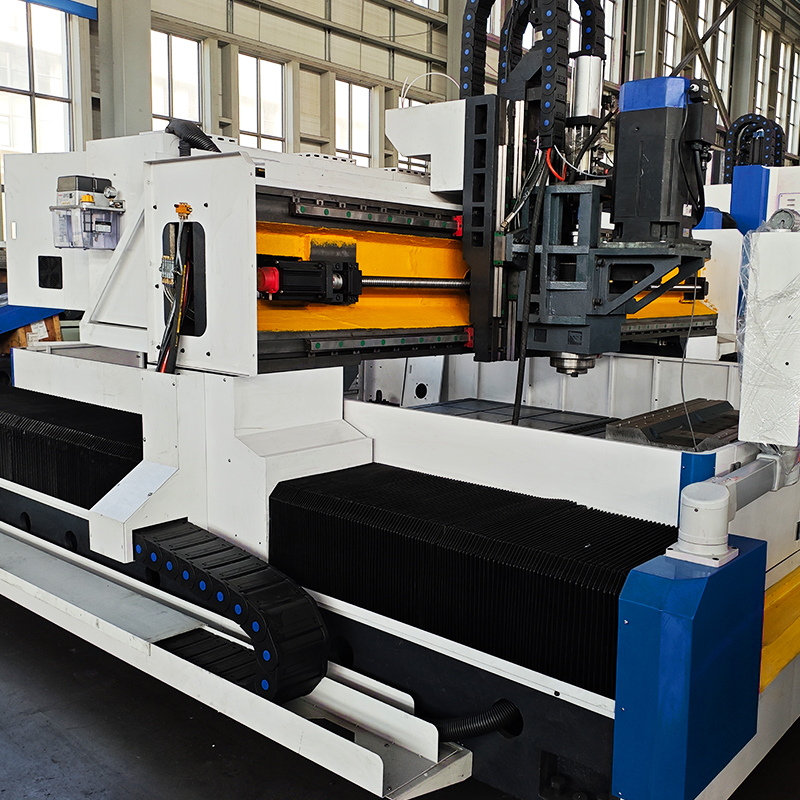

 Finished Product Display

|

 Data Sheet
