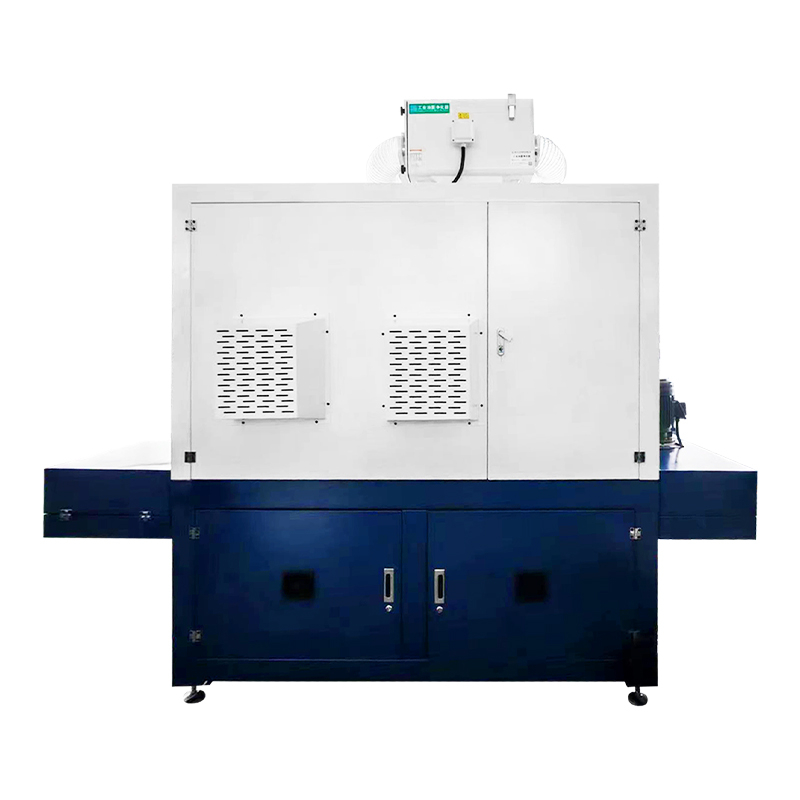

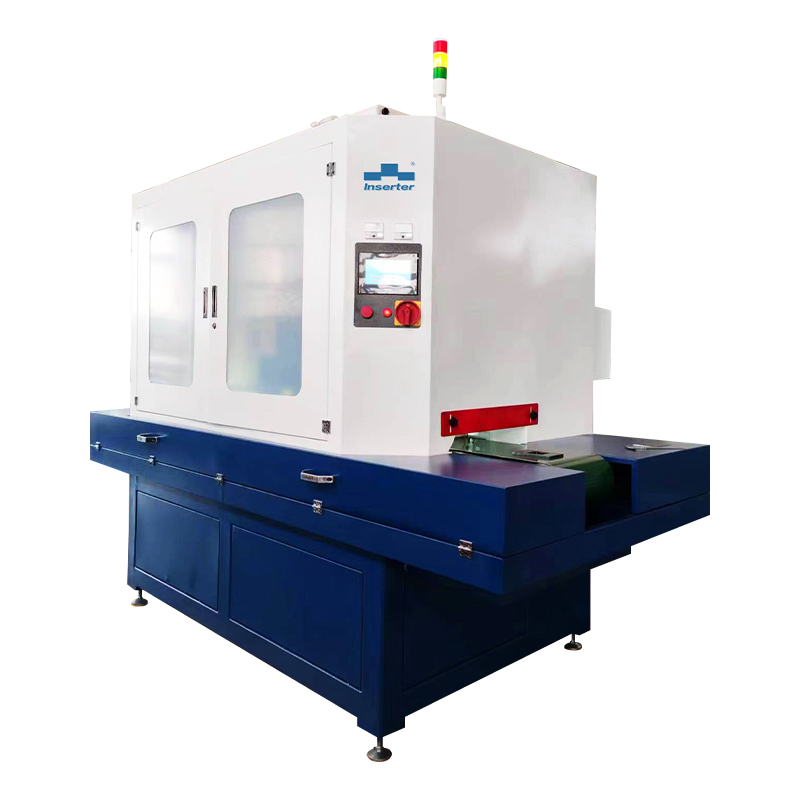

300WSSB Automatic Wet Deburring Machine

Maximum processing width: 300mm
Processing thickness: 1-80mm
Feeding speed: 1-6m/min (adjustable by frequency conversion)
Availability:
Quantity:
  • 300WSSB

  • Inserter

  • 300WSSB


Wet Deburring Machine Related Information

Functional Composition

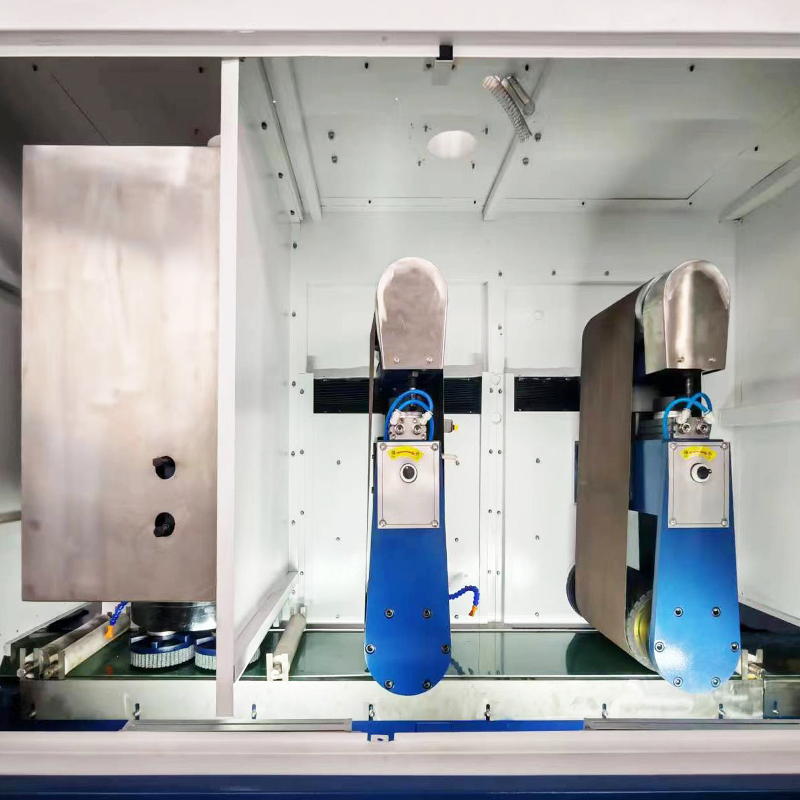

The equipment is an automatic deburring machine composed of two sets of abrasive belt mechanisms and a set of planetary brush discs.

Three-station wet deburring, safe and efficient grinding

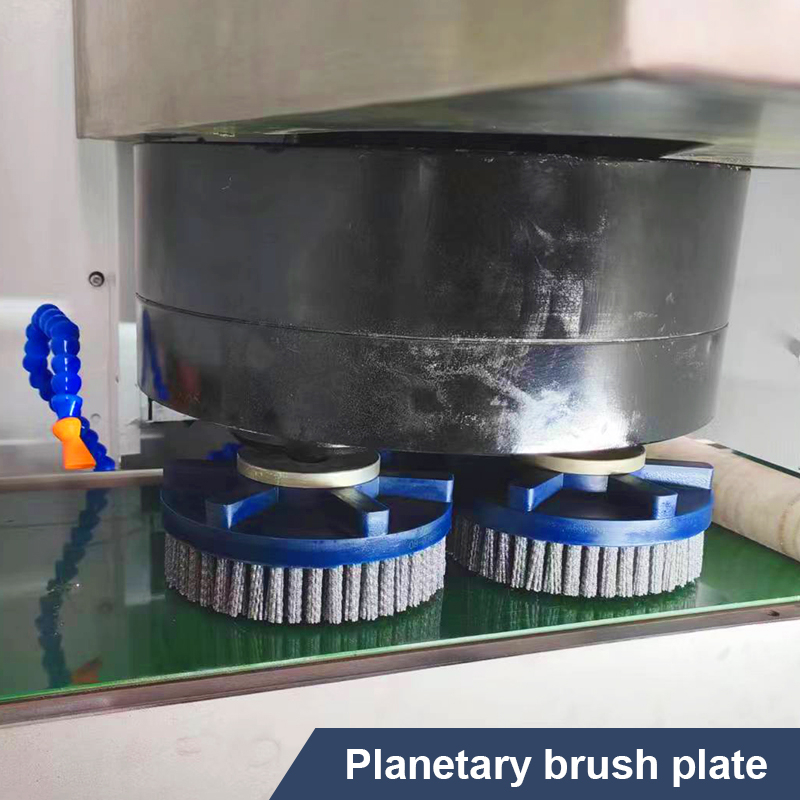

The sanding belt mechanism pre-grinds and removes the flanges on the product surface. Each set of brush discs contains three planetary brush discs. A single brush disc rotates, and the entire set revolves to achieve 360-degree deburring ofthe workpiece periphery and holes.


Features of Wet Deburring Machine

  • Surface brushing to remove burrs and scratches

  • Uniform chamfering around the workpiece and the inner hole

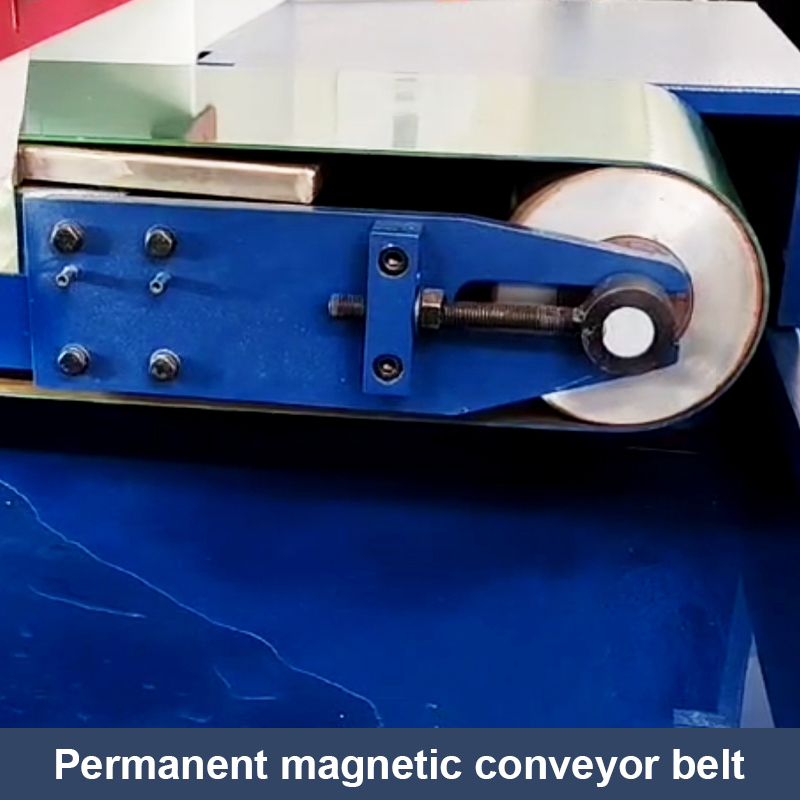

  • Equipped with imported fans or magnetic adsorption, it can meet the needs of small workpieces of 50*50mm

  • Automatic compensation function for disc brush abrasives

  • Automatic memory of process parameters when the machine is powered off

  • Abrasive reminder function

  • Optional cleaning and drying


Suitable Workpieces

Iron plates, copper plates, aluminum plates, stainless steel plates, etc.

Suitable Workpiece Processes

Precision punching parts, powder metallurgy parts, stamped parts, precision deburring and polishing of workpieces with holes.


Technical Parameters

Working Width

300/650/800/1050/1300mm

Working Thickness

0.5-100mm

Conveyor Speed

0.5-6m/min

Abrasive Belt Speed

14-20r/s

Disc Brush Speed

1450r/min

Rate Voltage

AC 380/50HZ

Pressure

0.6-0.8MPA
