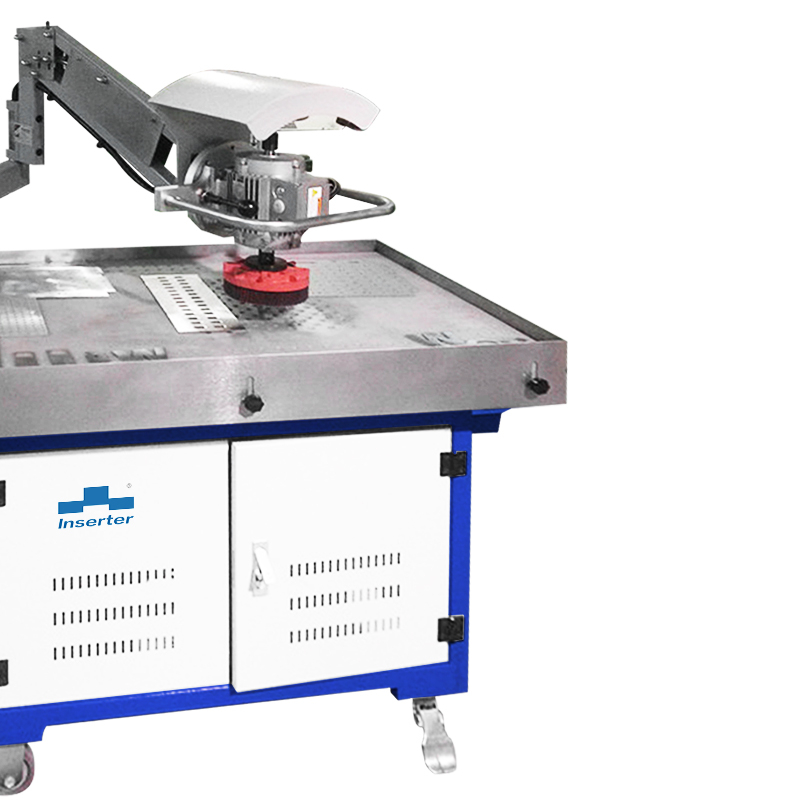

Manual deburring machine-working platform

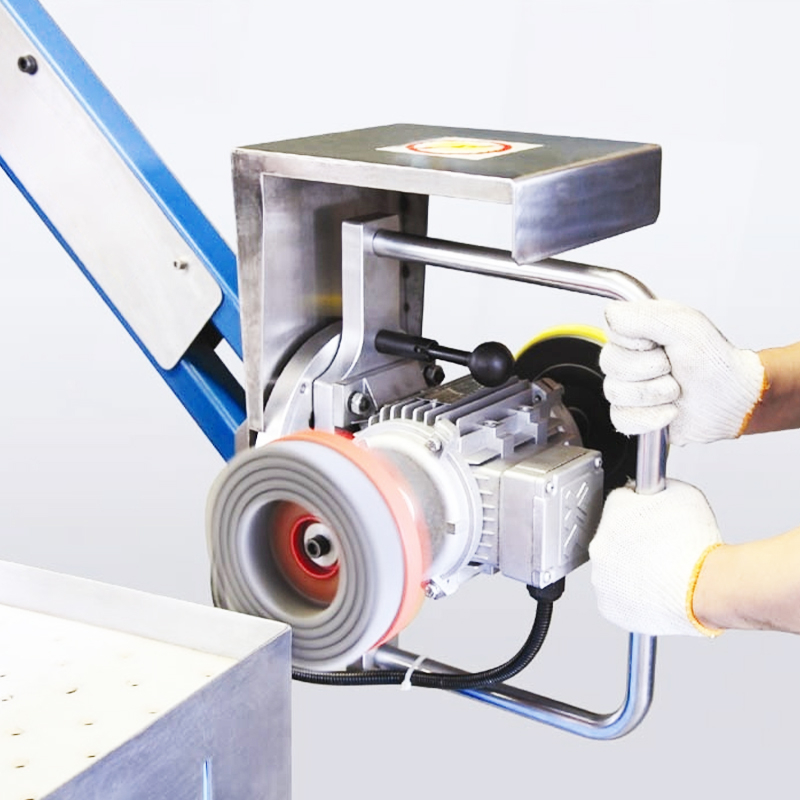

Manual deburring machine-grinding angles

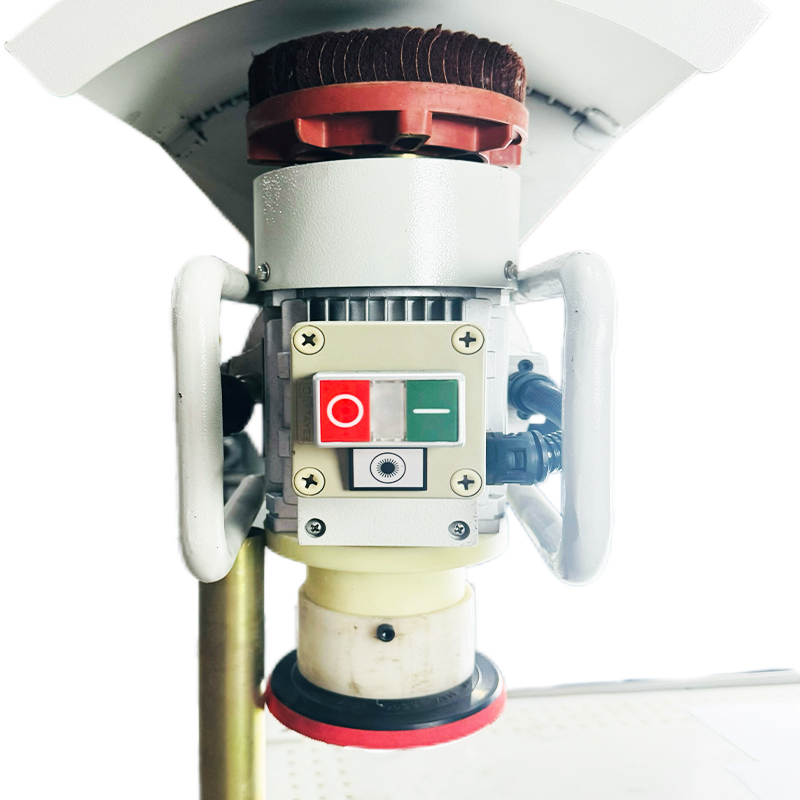

Manual deburring machine-One power two grinding heads configuration

Share to:

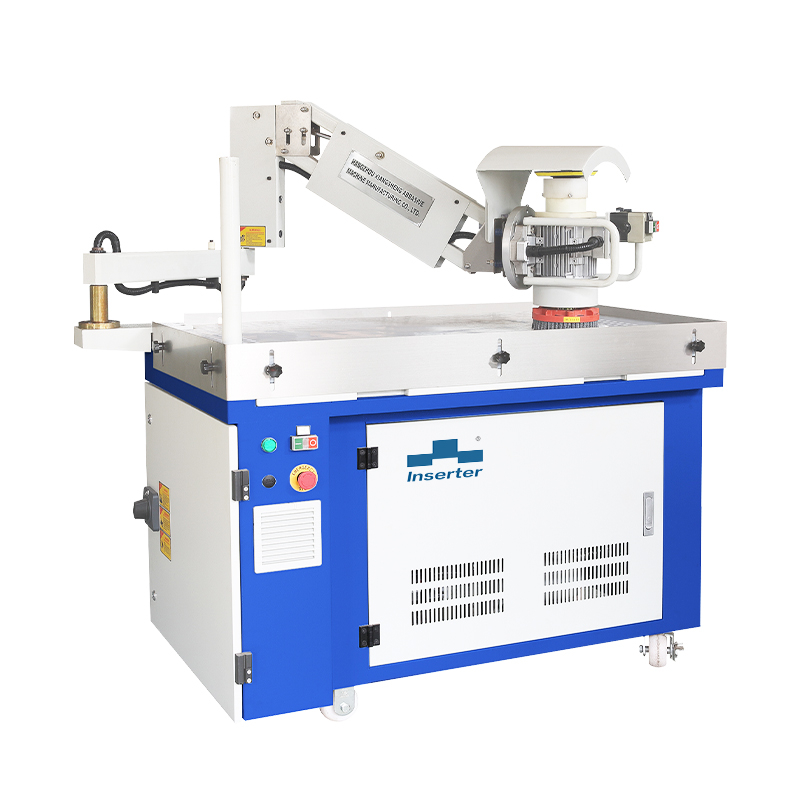

Manual Deburring and Edge Rounding Machine

Vacuum adsorption platform size: 330*300mm
Cantilever working range: 1500mm*360°
Processing workpiece thickness range: 1-150mm

Availability:

Quantity:



Inquire Add to Basket

Model:
RMD-165
Brand:
Inserter
Manual Deburring:
RMD-165

Product Description

Manual Deburring and Edge Rounding Equipment Features:

Air-pressure suspended grinding head, can move freely within the working range, only need to press down lightly to achieve the required grinding force.

Vacuum adsorption workbench, the workpiece only needs to be placed flat on the workbench, and can be ground without clamping

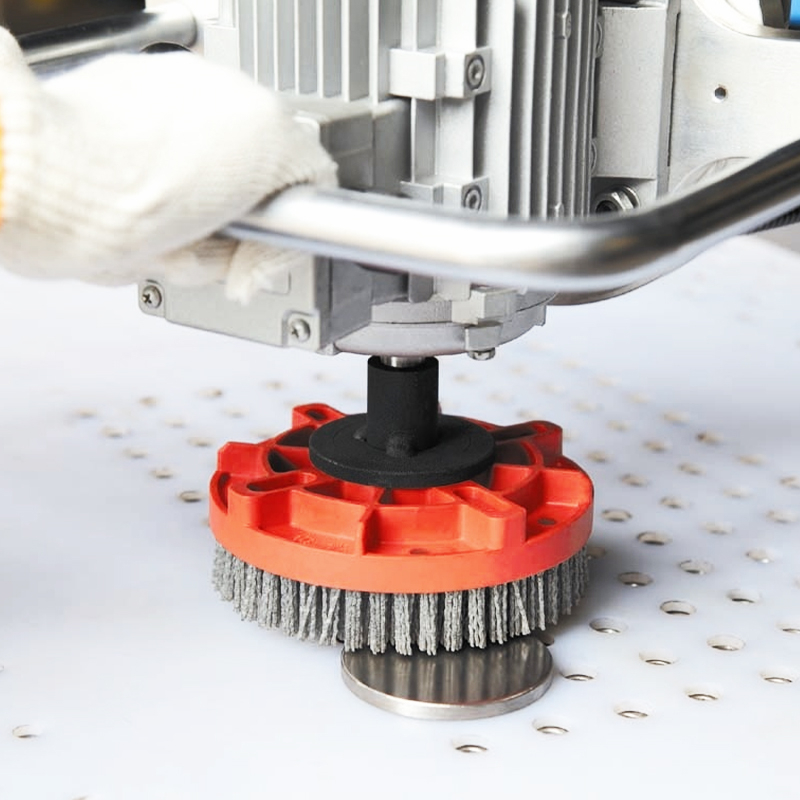

Different disc brushes can be selected according to the actual workpiece to achieve the best deburring effect

One power and two grinding heads are configured, only need to rotate 180°, and the grinding head can be changed within 2 seconds, which is efficient and convenient

If there is a workpiece larger than the workbench size, just place it within the cantilever range for grinding

Technical Data Sheet

Dimensions (LWH)	15057951550	Total power (kw)	3.75
Vacuum pump power (kw)	3	Grinding head power (kw)	0.75
Swing arm reaching span(mm)	1500*360°	Weight (kg)	450
Working thickness range(mm)	1-300	Work station dimension(L*M)	1250*700
Vacuum area (L*M)	300*330	Electrical configuration	Various config
Adjustable rotating speed of the motor(RPM)	150-1500	Minimum work piece size(mm)	80*80
