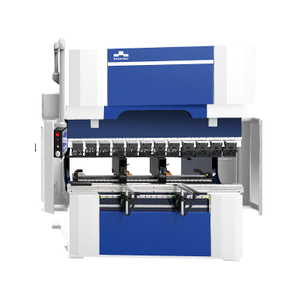

3 Axis Y X R Chinese Patent Hydraulic Technology Hybrid Press Brake

EHP Series 3 Axis CNC Servo Oil Electric Hybrid Press Brake

The latest hybrid driven system(1 servo pump);

The one only quantity production with proven technique in the world;

Best price with Chinese patent hydraulic technology and product;

Main Standard Configuration

Tooling and Clamping Equipment

  The tooling is including upper tooling and lower tooling, whole heat hardening, durable in use.

 The upper tooling is installed on the upper beam, to be fixed by the accuracy and fast   clamping.

 The lower tooling is used double V style, fast and easy to change the tooling, reduce labor   intensity.

Throat Distortion Compensating Device

 Accurately measure the amount of deformation and feedback compensation to ensure bending   accuracy.

 And it can effectively prevent non-standard workpieces from colliding with and interfering with   the detection unit.

Back Gauge

The novel and unique linear guide structure ensures excellent positioning accuracy.

 Multi grade gear design, increase the positioning range, and make the product more valuable.

Front Support Plate

 This part is a standard part, which is installed on the front of the workbench.

Hydraulic System

 Servo motor is used to replace the conventional three-phase asynchronous motor, so the   pressure and flow can be switched quickly.

 The servo motor can be significantly overloaded in a short time, with good energy-saving   effect.

 The noise is obviously reduced and the operation is more stable.

CNC System

 Easy operation Switzerland CYBELEC CybTouch 8

 8-inch high contrast color touch screen.

 Multiple languages are available.

 Richer alarm prompt function

Product Specification
