EP-604
Inserter

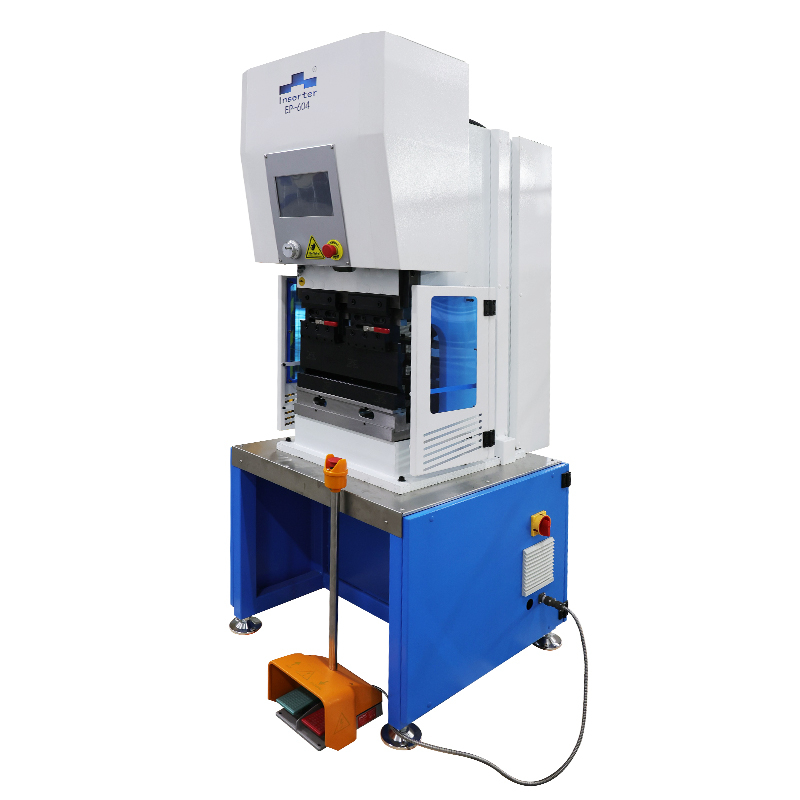

6 Ton Mini Full Electric Servo Press Brake
Why mini press brake? No need to development punching tools and Rapid proofing.It is very suitable for precision sheet metal parts and mechanical manufacturing parts.
Main Features
Dual servo motor Drive
100% Pure electric power, with no oil
Using heavy-duty high-precision ball screw
Up to 35% faster compared to a hydraulic press brake
Friendly user interface
Product Specification
| Bending Force | 6Ton |
| Bending Length | 400mm |
| Axis | 2 |
| Distance Between Column | 370mm |
| Throat Depth | 160mm |
| Stroke | 120mm |
| Opening Height | 420mm |

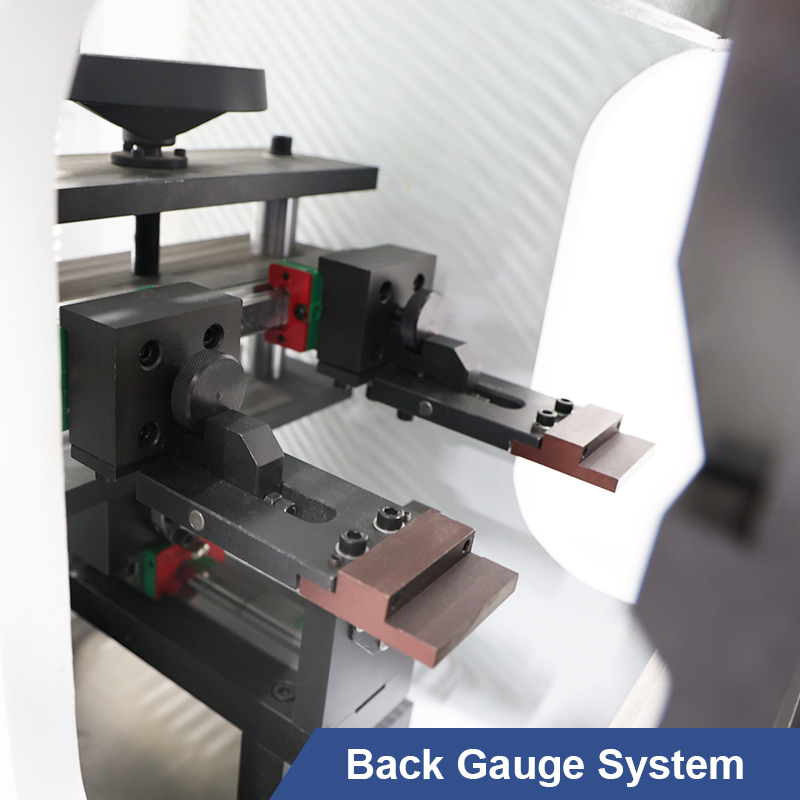

| Back Gauge Stroke | 200mm |
| Main Motro Power | 3KW |
| Motor | ishcanto |
| CNC System | ECO-10ES |
| Approach Speed | 200mm/s |
| Return Speed | 200mm/s |
| Bending Speed | 30mm/s |
| Repeat Positioning Accuracy | ±0.01mm |
| Size | 750*750*1980mm |
| Weight | 560kg |
